Miniature Bearings Australia
TPM-2000-05500-EI - Datasheet
MBA
Category Information

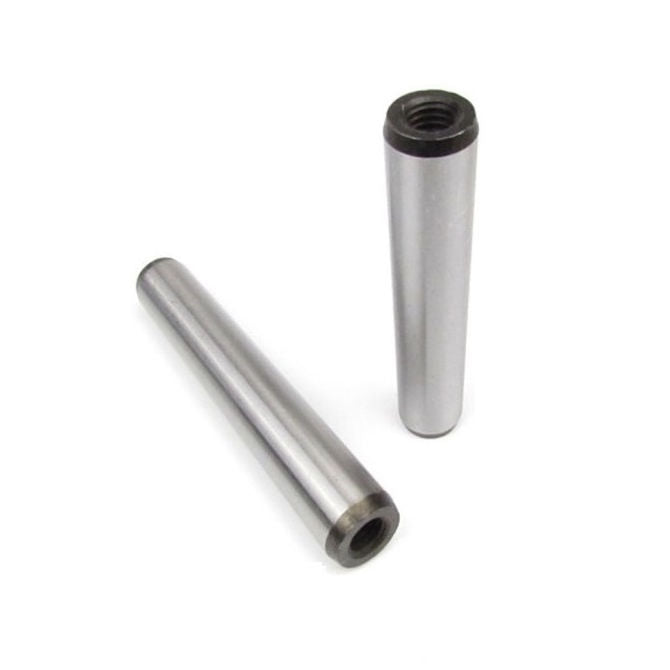

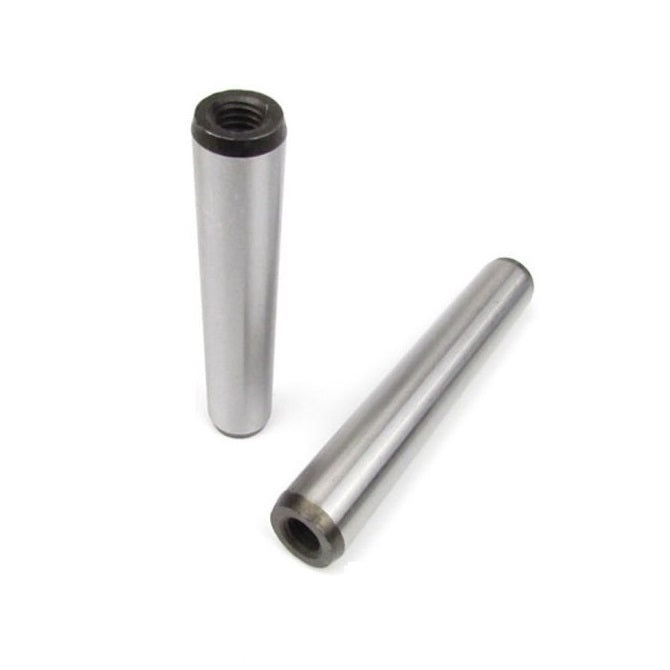

Pins - Taper Metric - Extractable - Internal ThreadInternal Thread Extractable Taper Metric Pins. Metric Sizes Tapered 1:50 and threaded internally for easy extraction.
- An expanded range may be available on special order. Please enquire.
- DIN 7978.
Product Data

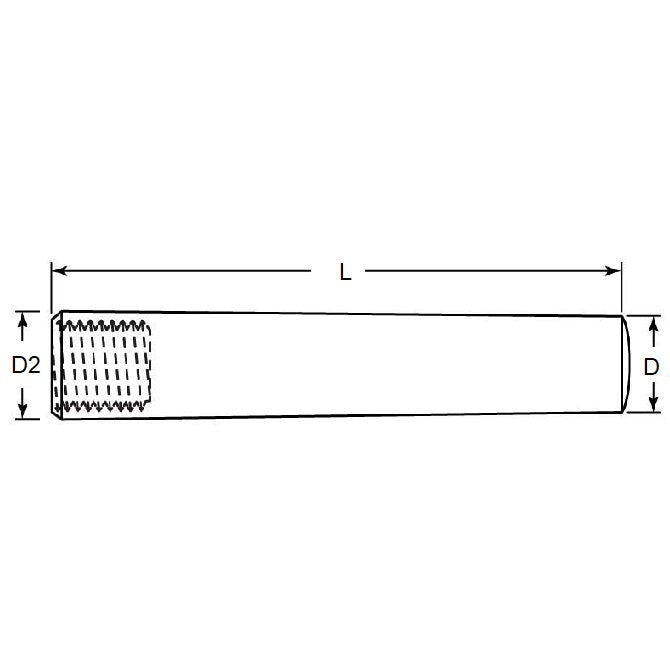

- Nom. Small End Diameter (D)
:
20.00
mm
(Equiv. 0.787 in.) - Length (L)
55.00
mm
(Equiv. 2.165 in.) - Nom. Large End Diameter (D2)
21.10
mm
(Equiv. 0.831 in.) - Thread Size M12
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- TPM200005500EX
- TPX20-55
- TPX2055
