Category Information
Pins - Taper Metric - Extractable - Internal ThreadInternal Thread Extractable Taper Metric Pins. Metric Sizes Tapered 1:50 and threaded internally for easy extraction.
- An expanded range may be available on special order. Please enquire.
- DIN 7978.
Product Data

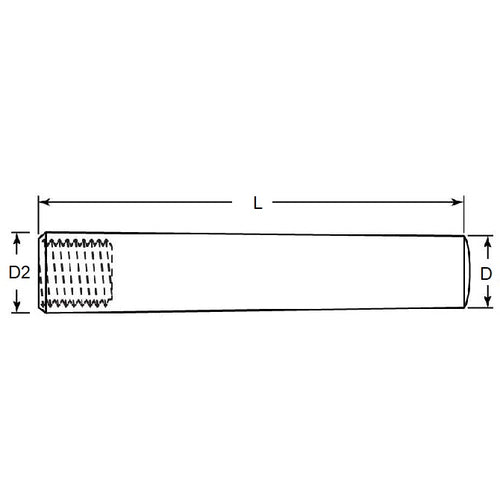

- Nom. Small End Diameter (D)
:
20.00
mm
(Equiv. 0.787 in.) - Length (L)
40.00
mm
(Equiv. 1.575 in.) - Nom. Large End Diameter (D2)
20.80
mm
(Equiv. 0.819 in.) - Thread Size M12
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- TPX2040
- TPM200004000EX
- TPX20-40
