TPM-1600-10000-EI - Datasheet
ENQUIRE
Category Information
Pins - Taper Metric - Extractable - Internal ThreadInternal Thread Extractable Taper Metric Pins. Metric Sizes Tapered 1:50 and threaded internally for easy extraction.
- An expanded range may be available on special order. Please enquire.
- DIN 7978.

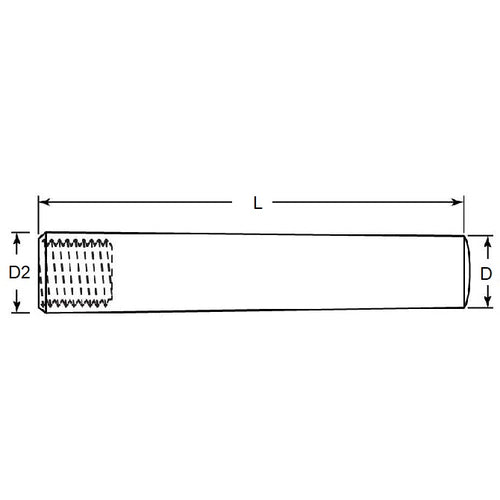

Product Data
- Nom. Small End Diameter (D) : 16.00 mm
- Length (L) 100.00 mm
- Nom. Large End Diameter (D2) 18.00 mm
- Thread Size M10
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- TPX16100
- TPM160010000EX
- TPX16-100
