TPM-1000-12000-EI - Datasheet
ENQUIRE
Category Information
Pins - Taper Metric - Extractable - Internal ThreadInternal Thread Extractable Taper Metric Pins. Metric Sizes Tapered 1:50 and threaded internally for easy extraction.
- An expanded range may be available on special order. Please enquire.
- DIN 7978.

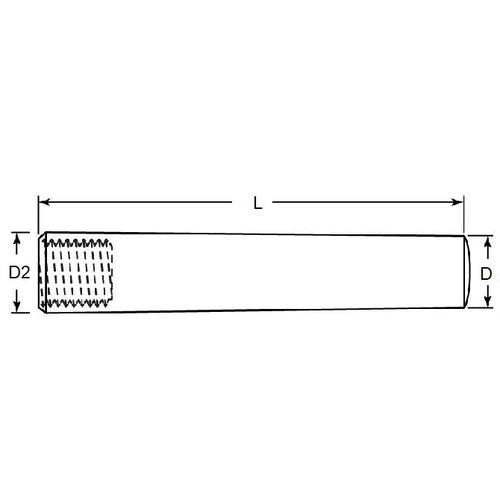

Product Data
- Nom. Small End Diameter (D) : 10.00 mm
- Length (L) 120.00 mm
- Nom. Large End Diameter (D2) 12.40 mm
- Thread Size M6
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- TPM100012000EX
- TPX10120
- TPX10-120
