DB060-077-250 - Datasheet
NoCor
Category Information

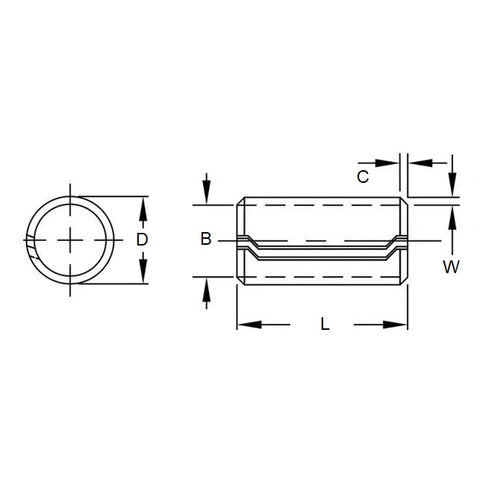

Pins - Dowel BushingsDowel Bushings Pins. Series DB100 Spirol
- An expanded range may be available on special order. Please enquire.
- Spring Steel.
- Precision rolled bushes manufactured from spring steel.
- Designed to eliminate the need for separate dowling where two components are to be located accurately together and fastened with bolts.
- They are available for use with bolts from M5 to M12.
Product Data
- Suitable Bolt Size
:
6.00
mm
(Equiv. 0.236 in.) - Length
25.00
mm
+ 0.0 / - 1.0
(Equiv. 0.984 in.) - Rec. Hole Diameter Min
7.67
mm
(Equiv. 0.302 in.) - Unassembled Diameter (D) Min 7.92 mm
- Unassembled Diameter (D) Max 8.18 mm
- Wall Thickness 0.71 mm
- Rec. Hole Diameter Max 7.80 mm
- Minimum Single Shear 11.40 kN
Product Compliance and Data
Additional Resources
Cross References
- DB6-25
- DB625
