Miniature Bearings Australia
BLP-095-0127-MHR-S4 - Datasheet
MBA
Category Information

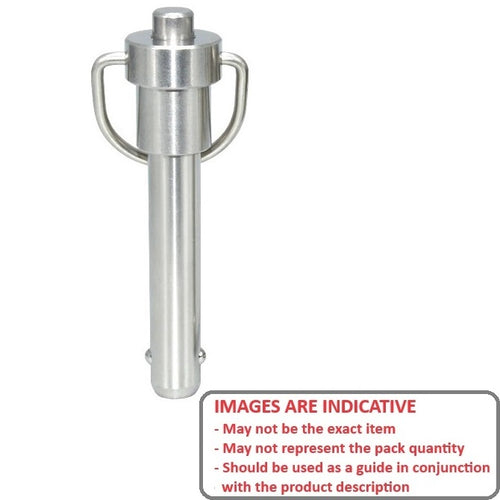

Pins - Ball Lock - Marine Style - Half RingHalf Ring Marine Style Ball Lock Pins. Quick release. Provide positive locking for all types of applications and equipment. Body, head and all internal components are made from corrosion resistant stainless steel.
- An expanded range may be available on special order. Please enquire.
- Positive lock detent pins.
- 303 Stainless shanks and heads
- 300 Grade Stainless Components
- 440C Stainless Balls
- Ring dimensions may vary. Please contact us before purchasing if the ring dimensions are important to your application.
Product Data

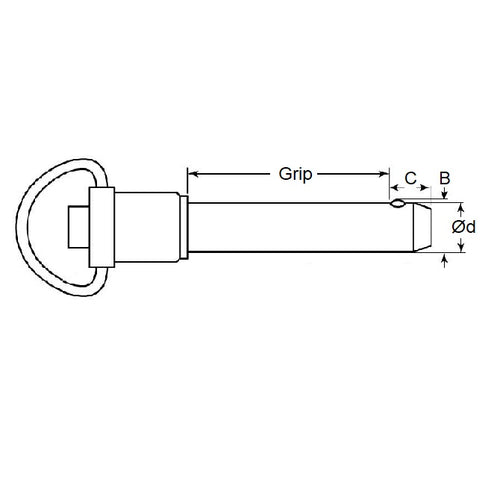

- Nominal Diameter
:
9.53
mm
(Equiv. 0.375 in.) - Grip Length (B)
12.70
mm
(Equiv. 0.5 in.) - Pin Material Grade 304 Stainless Steel
- Locking Ball to End (C ) 12.45 mm
- Open Ball Distance (B) 11.13 mm
- Other Info Available in 17-4 Grade Stainless on Request
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- SMP147
- SMP-147
