PLST-080M-200-PC-016 - Datasheet
MBA
Category Information

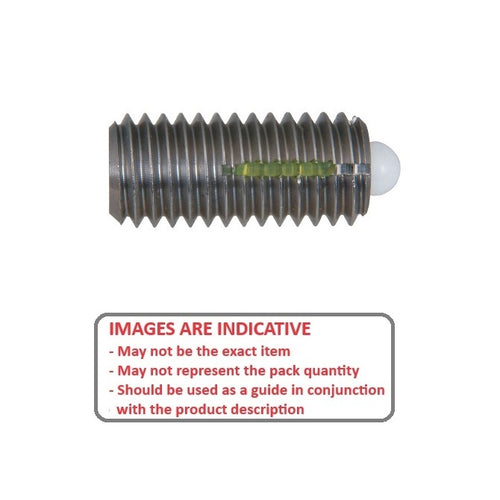

Plungers - Spring - No Handle - Steel - Plastic NosePlastic Nose Steel No Handle Spring Plungers. Plastic nose with steel body
- A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
- Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
- Also known as ball plungers or spring-loaded pins.
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (A) : M8 (8x1.25mm)
- Thread Length (B)
20.0
mm
(Equiv. 0.787 in.) - Initial Pressure (F1) 4.0 N
- Final Pressure (F2) 16.0 N
- Tip Diameter (D) 3.5 mm
- Tip Length (C) 3.0 mm
- Body Length (B) 20.0 mm
- Drive 2.5mm Hex
- Material Steel Body with Plastic
Product Compliance and Data
Additional Resources
Cross References
- PLST080200PC016
