MLM-080M-080-CZRP - Datasheet
MBA
Category Information

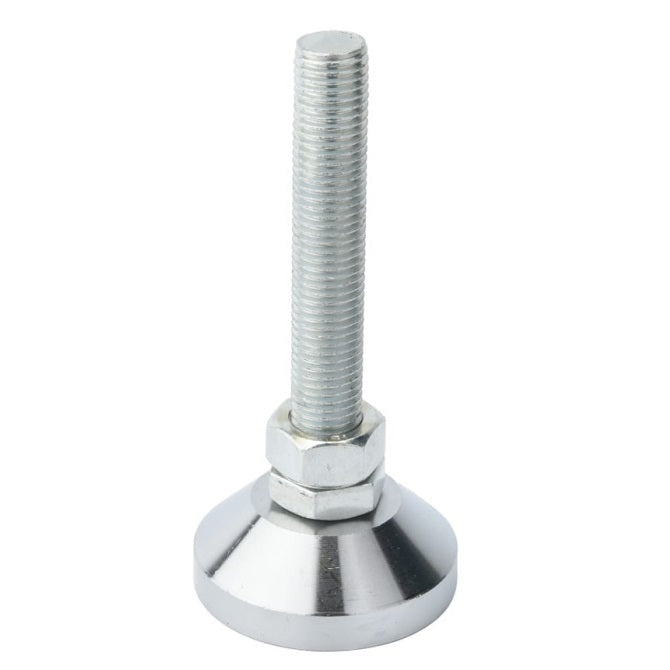

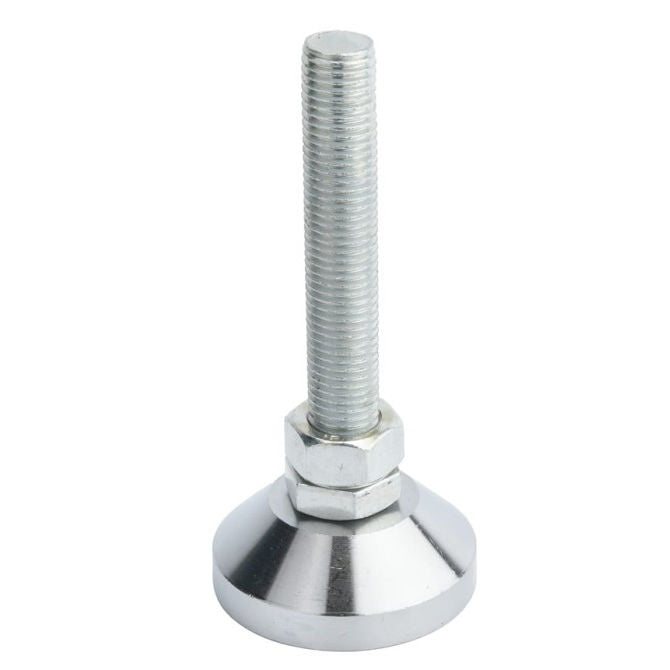

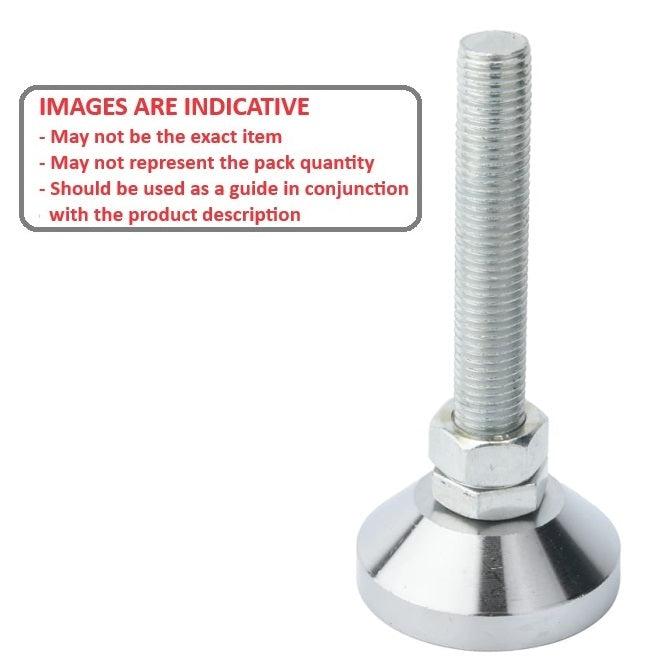

Mounts - Levelling Studded - Standard - PlatedPlated Standard Levelling Studded Mounts. Levelling adjusters. Good quality with value pricing. Hardened ball for high load ratings and excellent wear characteristics.
- An expanded range may be available on special order. Please enquire.
- Large diameter base for added support.
- 15o off centre swivel for quick leveling on sloped surfaces.
Product Data

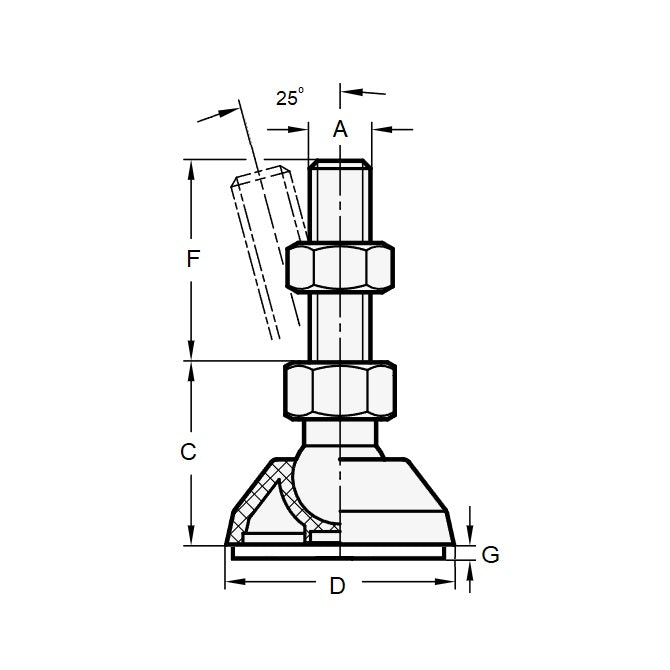

- Thread Size (A) : M8 (8x1.25mm)
- Base Diameter (D)
50.00
mm
(Equiv. 1.969 in.) - Foot Height (C)
26.50
mm
(Equiv. 1.043 in.) - Thread Length (F) 80.00 mm
- Base Height (E) 17.50 mm
- Overall Height 106.5 mm
- Load Rating 400 Kg
- Finish Zinc Plated
- Hex Flats (B) 13.00 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-CFJFN50-8-80
- Misumi C-CFJFNV50-8-80
- CCFJFNV50880
- CCFJFN50880
