IN-RIV-080M-038-R - Datasheet
MBA
Category Information

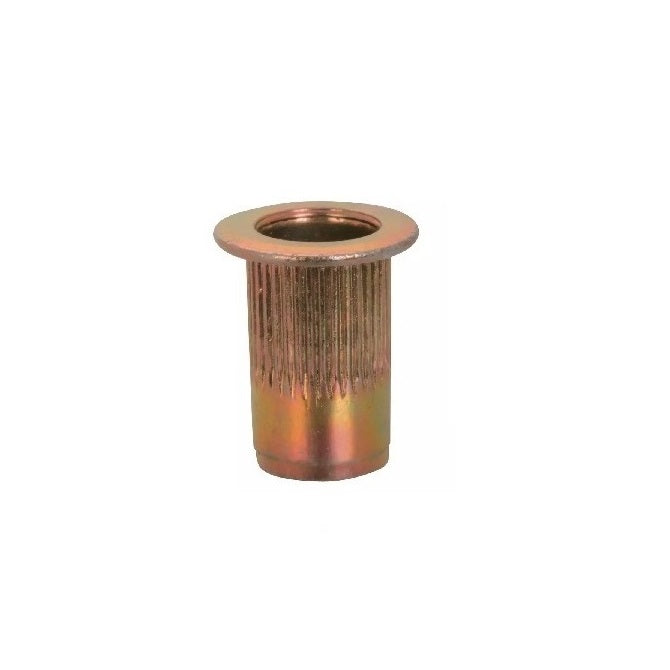

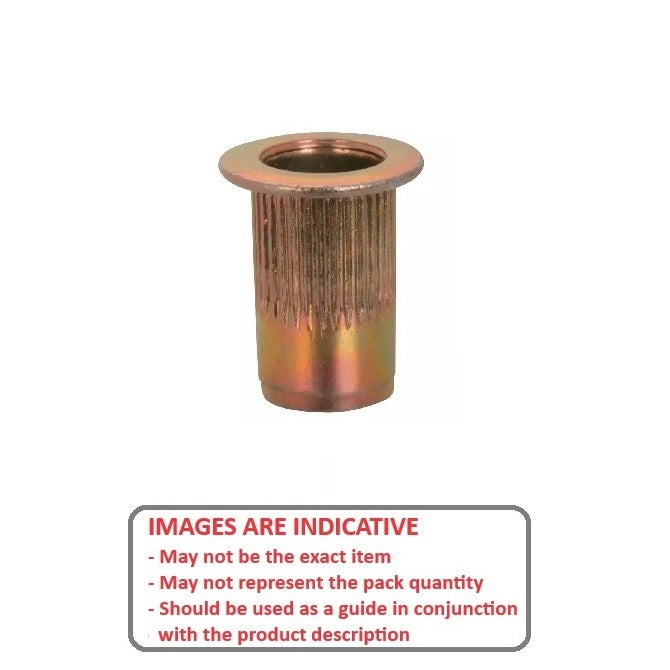

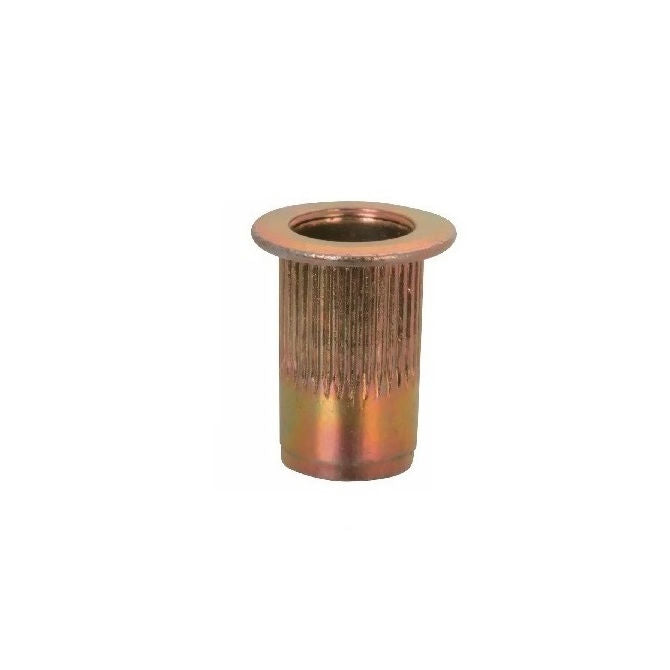

Inserts - Rivet Nuts - Klik - RibbedRibbed Klik Rivet Nuts Inserts. Individual Inserts for use with the Klik Thread Setter Tool
- These blind threaded inserts offer strong torque and pull out characteristics. Especially effective in sheet metal and other thin material.
- Insert is placed into the hole in the parent material and crimped up with the installation tool.
- Installs from one side - no tapping required. Installs almost flush eliminating the need for countersinking.
- Made from plated steel.
Product Data
- Internal Thread : M8 (8x1.25mm)
- Drill Hole Size
13.5
mm
(Equiv. 0.531 in.) - Grip Range
0.70 - 3.80
mm

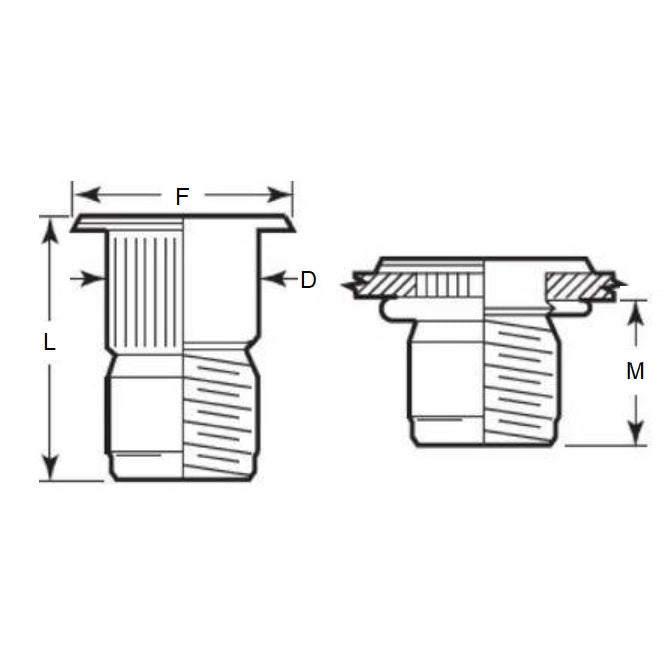

(Equiv. 0.028 in.) - Body Diameter (D) 13.45 mm
- Flange Diameter (F) 17 mm
- L 17.500 mm
- M 11.000 mm
- 0.70 - 3.80
