SS060M-0096-S4-S440-DKT - Datasheet
MBA
Category Information

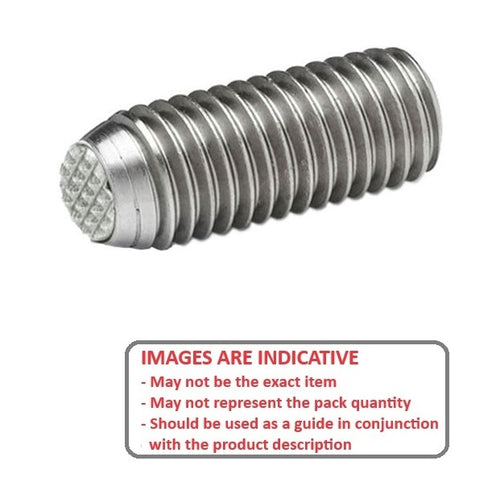

Socket Set Screws - Diamond Knurled Tip - Stainless SteelStainless Steel Diamond Knurled Tip Socket Set Screws. Grub screws that grip rough shafts.
- Socket driven grub screw swith a knurled diamond tip.
- Unlike traditional cup-point set screws, diamond tip is less aggressive but still provides a strong grip on the contact surface. This allows for a snug fit without damaging or permanently marking the material.
Product Data
- Thread Size : M6 (6x1mm)
- Thread Length (L)
9.6
mm
(Equiv. 0.378 in.) - Type Diamond Knurled Tip
- 10.0
- Ball Diameter (D) 3.2 mm
- Hex Key Size 3.0 mm
- Body Material 304 Stainless Steel
- Ball Material 440C Stainless HRC 50-55
- Pitch 1.0 mm
- Threads Per Inch 25.4 TPI
- Material 304 Stainless Steel with 440C Stainless HRC 50-55 tip
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Misumi FSUG6-10
- Misumi SCSS-M6X10-GB
- SCSSM6X10GB
- FSUG610
