SC060M-070-C-SK-CZ - Datasheet
Brighton Best
Category Information

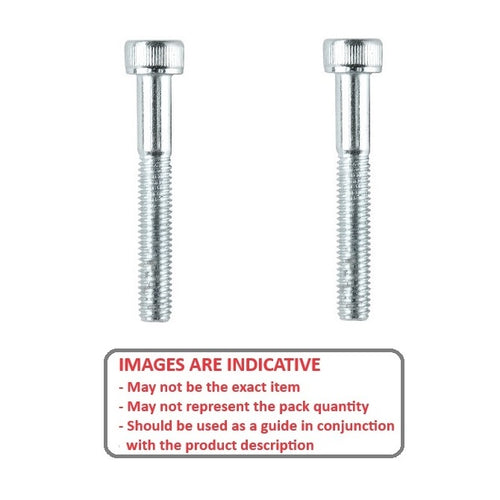

Screws - Socket Cap - Zinc PlatedZinc Plated Socket Cap Screws. UNC - UNF - METRIC - Alloy Steel.
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN912.
Product Data
- Thread Size (C) : M6 (6x1mm)
- Thread Length (L)
70
mm
(Equiv. 2.756 in.) - Material Zinc Plated Steel
- Head Length (B Max.) 6.0 mm
- Head Diameter (A Max.) 10.0 mm
- Drive Depth (E) 3.00 mm
- Shank Diameter (C) 5.82 - 6.00 mm
- Hex Key (D) 5.00 mm
- Pitch 1.000 mm
- Threads Per Inch 25.4 TPI
- Min thread Length 24 mm
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 876100
