PLST-060M-200-PS-017 - Datasheet

MBA

Category Information

Plungers - Spring - No Handle - Stainless - Plastic Nose

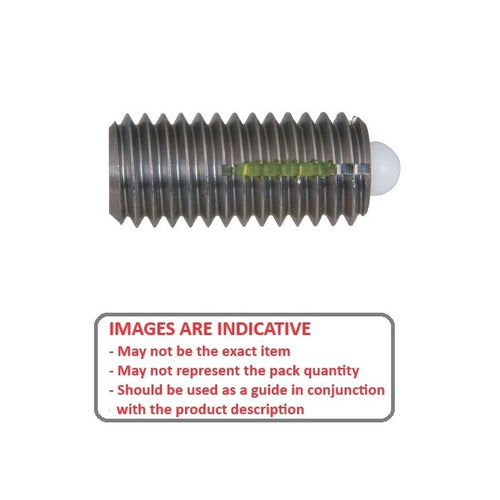

Plastic Nose Stainless No Handle Spring Plungers. 303 Stainless Steel body with plastic nose

  • A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
  • Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
  • Also known as ball plungers or spring-loaded pins.
  • Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

Product Data

  • Thread Size (A) : M6 (6x1mm)
  • Thread Length (B) 20.0 mm
    (Equiv. 0.787 in.)
  • Initial Pressure (F1) 6.0 N
  • Final Pressure (F2) 17.0 N
  • Tip Diameter (D) 2.7 mm
  • Tip Length (C) 2.5 mm
  • Body Length (B) 20.0 mm
  • Drive 2.0mm Hex
  • Material Stainless Steel Body with Plastic
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • PLST060200PS017
