PLST-060M-140-C-009 - Datasheet

MBA

Category Information

Plungers - Spring - No Handle - Steel - Standard Nose

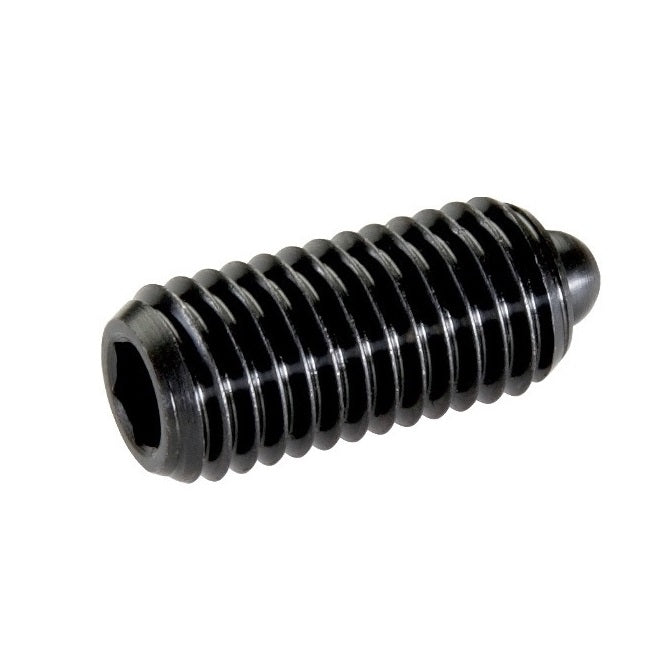

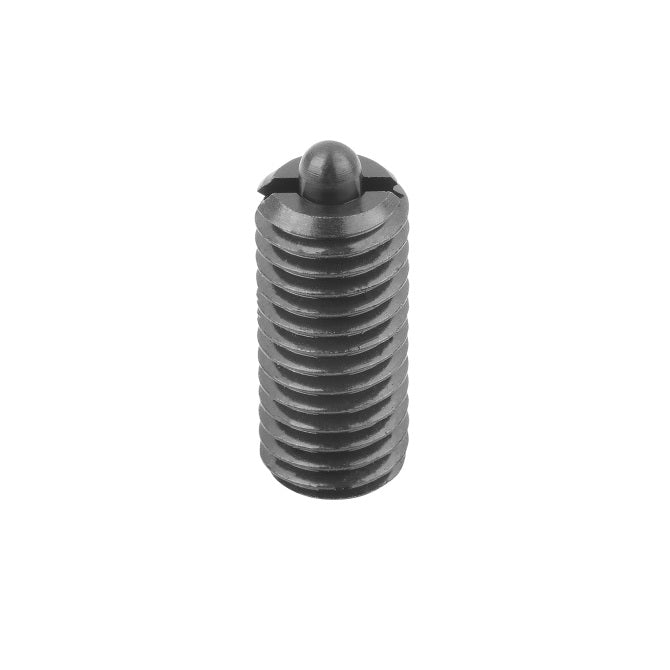

Standard Nose Steel No Handle Spring Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

  • A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
  • Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
  • Also known as ball plungers or spring-loaded pins.

Product Data

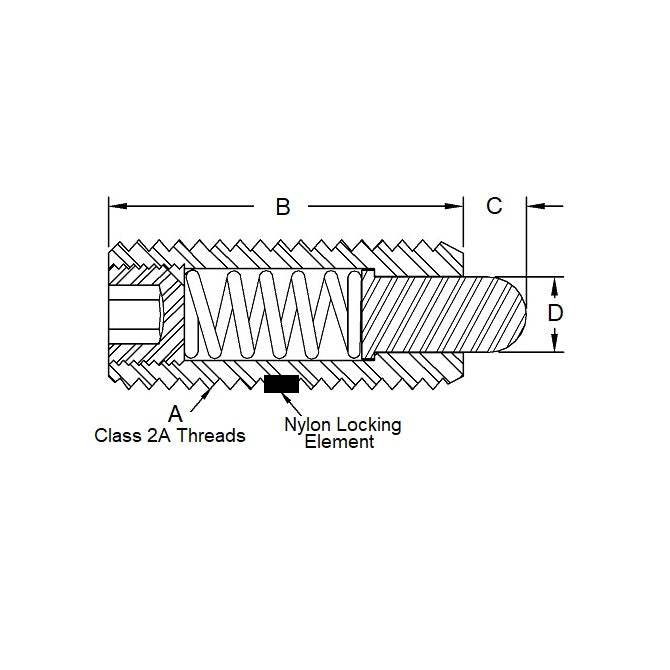

  • Thread Size (A) : M6 (6x1mm)
  • Thread Length (B) 14.0 mm
    (Equiv. 0.551 in.)
  • Initial Pressure (F1) 3.0 N
  • Final Pressure (F2) 9.0 N
  • Tip Diameter (D) 2.7 mm
  • Tip Length 2.0 mm
  • Body Length (B) 14.0 mm
  • Drive Slotted
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • PLST060140C009
