SC060M-010-C-SK-T5 - Datasheet
MBA
Category Information

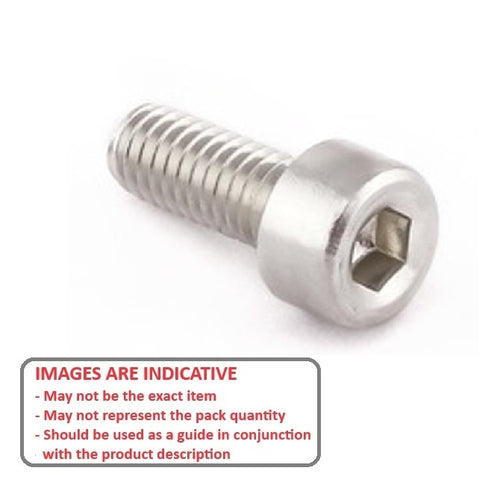

Screws - Socket Cap - Titanium - Ti-Gr5 Ti-6Al4v DIN912Ti-Gr5 Ti-6Al4v DIN912 Titanium Socket Cap Screws. Metric Sizes to DIN912. Grade 5 6Al-4V is a high strength titanium alloy. Tensile Strength 91.5kgf / mm2. Yield Strength 84.5kgf / mm2. Elongation 10 Percent.
- An expanded range may be available on special order. Please enquire.
- Used in critical aircraft structural components. UNS R56400.
- Composition Percentage: Al 5.5-6.75, V 3.5-4.5, N 0.05, C 0.08, H 0.015, Fe 0.40, O 0.2, Ti Balance
- Grade 5 6Al-4V is a high strength titanium alloy. Tensile Strength 91.5kgf / mm2. Yield Strength 84.5kgf / mm2. Elongation 10 Percent.
Product Data
- Thread Size (C) : M6 (6x1mm)
- Thread Length (L)
10
mm
(Equiv. 0.394 in.) - Material 6AL-4V Titanium Grade5
- Head Length (B Max.) 6.0 mm
- Head Diameter (A Max.) 10.0 mm
- Drive Depth (E) 3.00 mm
- Shank Diameter (C) 5.82 - 6.00 mm
- Hex Key (D) 5.00 mm
- Pitch 1.000 mm
- Threads Per Inch 25.4 TPI
- Min thread Length 10 mm
- Material Titanium High Strength
