PLST-060-130-HSL-002 - Datasheet
MBA
Category Information

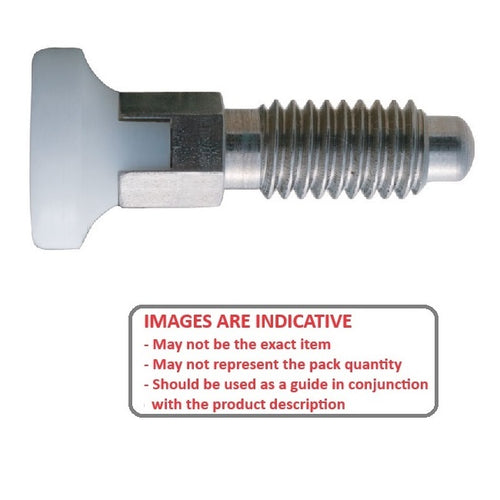

Plungers - Spring - Acetal Handle - Locking - StainlessStainless Locking Acetal Handle Spring Plungers. White acetal plastic handle . 303 stainless steel body and plunger.
- A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
- Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
- Also known as ball plungers or spring-loaded pins.
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data

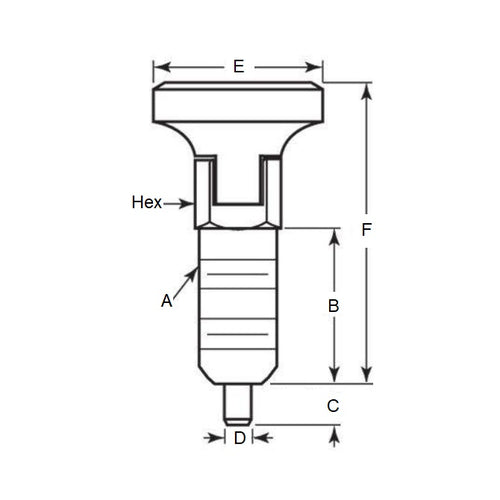

- Thread Size (A) : M6 (6x1mm)
- Thread Length (B)
13.0
mm
(Equiv. 0.512 in.) - Initial Pressure (F1) 0.5 N
- Final Pressure (F2) 1.5 N
- Tip Diameter (D) 3.0 mm
- Tip Length (C) 3.0 mm
- Head Diameter (E) 12.0 mm
- Overall Length (F) 25.0
- Hex 6.0
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- PRT29
- PRT-29
