PLST-060M-250-C-018-A - Datasheet
MBA
Category Information

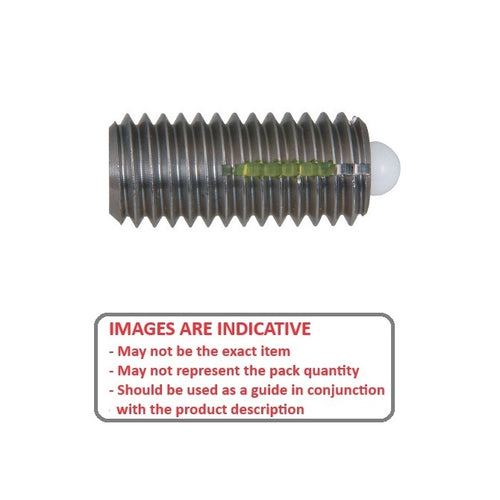

Plungers - Spring - No Handle - Steel - Acetal NoseAcetal Nose Steel No Handle Spring Plungers. Steel body and acetal nose
- A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
- Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
- Also known as ball plungers or spring-loaded pins.
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data

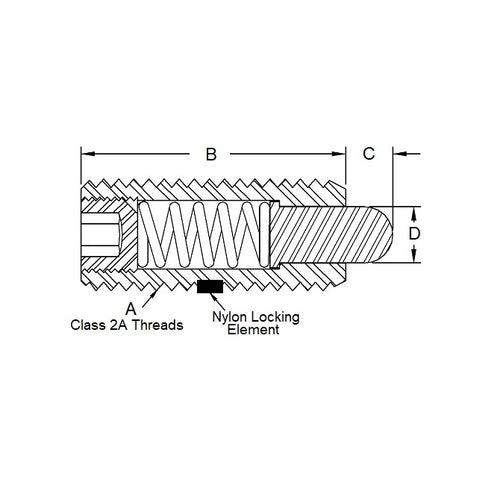

- Thread Size (A) : M6 (6x1mm)
- Thread Length (B)
25.0
mm
(Equiv. 0.984 in.) - Initial Pressure (F1) 4.4 N
- Final Pressure (F2) 17.7 N
- Tip Diameter (D) 3.0 mm
- Tip Length (C) 5.0 mm
- Body Length (B) 25.0 mm
- Drive 3.0mm Hex
- Material Steel Body with Acetal Nose
Product Compliance and Data
Additional Resources
Cross References
- PLST060250C018A
