PLST-050M-020-S3-010 - Datasheet

MBA

Category Information

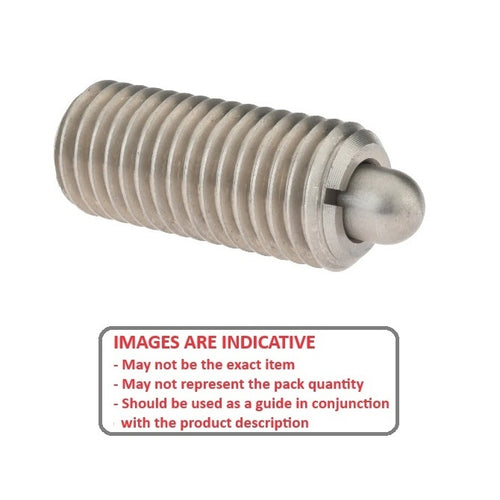

Plungers - Spring - No Handle - Stainless - Stainless Nose

Stainless Nose Stainless No Handle Spring Plungers. 303 Stainless Steel.

  • A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
  • Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
  • Also known as ball plungers or spring-loaded pins.
  • Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

Product Data

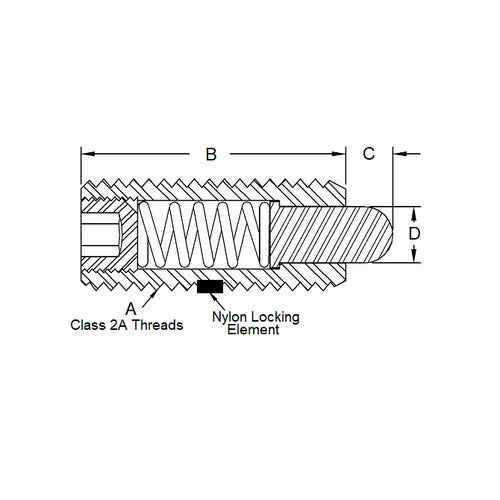

  • Thread Size (A) : M5 (5x0.8mm)
  • Thread Length (B) 20.0 mm
    (Equiv. 0.787 in.)
  • Initial Pressure (F1) 2.00 N
  • Final Pressure (F2) 10.00 N
  • Tip Diameter (D) 2.00 mm
  • Tip Length (C) 3.00 mm
  • Body Length (B) 20.0 mm
  • Body Material 304 Stainless
  • Drive 1.5 Hex
  • Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi C-PJLW5-3
  • CPJLW53
