REC-040-KIT - Datasheet
RECOIL
Category Information

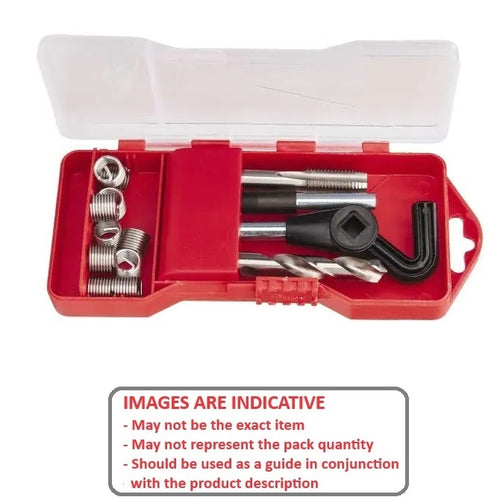

Thread Repair - Size Kits - RecoilRecoil Size Kits Thread Repair. Recoil inserts are screwed directly into an enlarged tapped hole. A tap and installation tool is included with these kits.
- Stainless inserts.

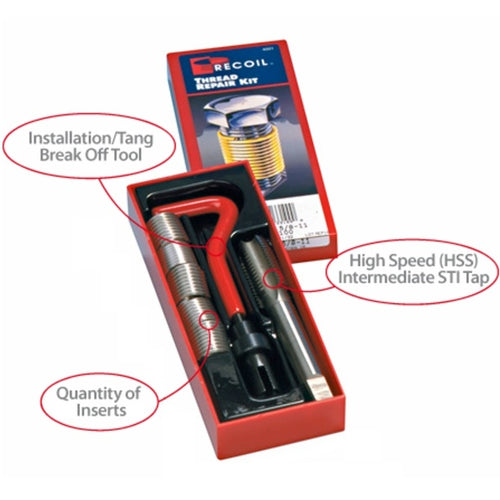

- Contents: Ground intermediate (2nd) tap. Inserts. Installation/tang break off tool. Full instructions.
- Manufactured to BS 4377 BS 3049 parts 1 & 2.
- Recoil helically-wound thread inserts are formed from 18-8 (Type 304) Stainless Steel.
- The wire in most sizes has a tensile strength of greater than 200,000 P.S.I. and a finish better than 32 micro inches.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Size : M4x0.7
- Inserts per Kit 10
- Drill Size
4.2
mm
(Equiv. 0.165 in.)
Product Compliance and Data
Additional Resources
Cross References
- RK35040
