IN-RIV-040M-020-R - Datasheet

MBA

Category Information

Inserts - Rivet Nuts - Klik - Ribbed

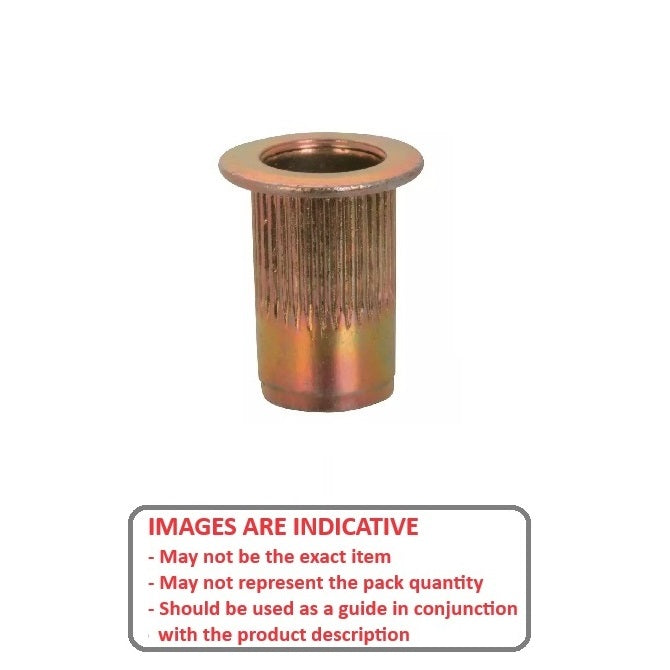

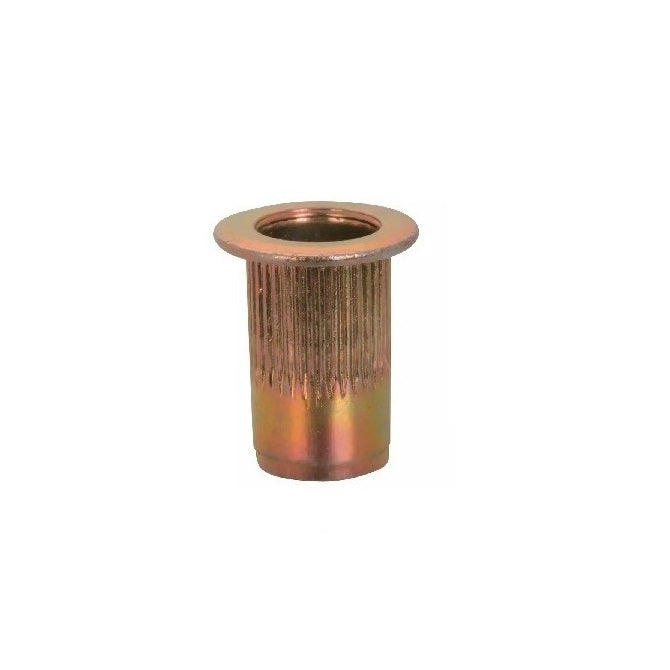

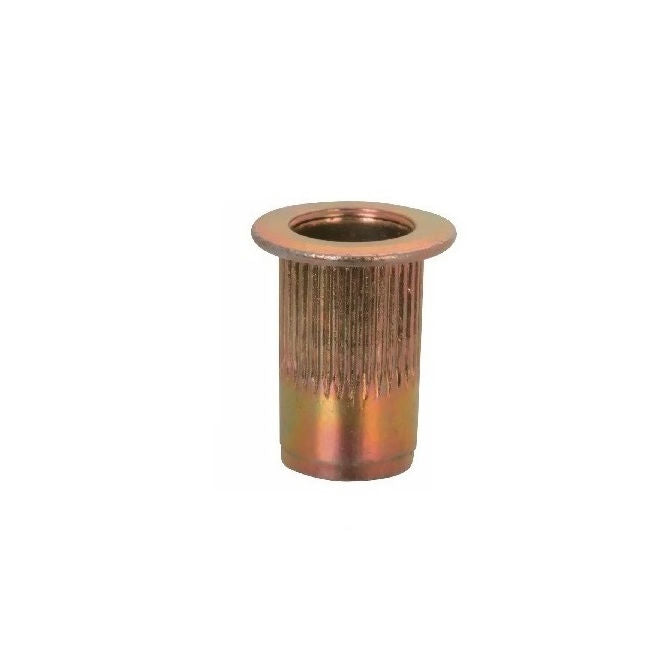

Ribbed Klik Rivet Nuts Inserts. Individual Inserts for use with the Klik Thread Setter Tool

  • These blind threaded inserts offer strong torque and pull out characteristics. Especially effective in sheet metal and other thin material.
  • Insert is placed into the hole in the parent material and crimped up with the installation tool.
  • Installs from one side - no tapping required. Installs almost flush eliminating the need for countersinking.
  • Made from plated steel.

Product Data

  • Internal Thread : M4 (4x0.7mm)
  • Drill Hole Size 6.8 mm
    (Equiv. 0.268 in.)
  • Grip Range 0.50 - 2.00 mm
    (Equiv. 0.02 in.)

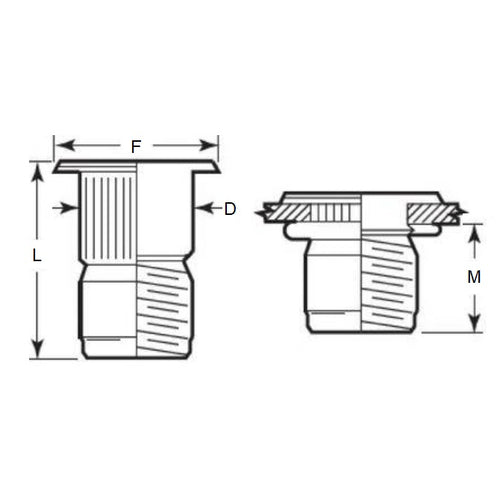

  • Body Diameter (D) 6.75 mm
  • Flange Diameter (F) 9.5 mm
  • L 10.900 mm
  • M 7.000 mm
  • 0.50 - 2.00
Country of Origin: US
