MLM-240M-180-S4 - Datasheet

MBA

Category Information

Mounts - Levelling Studded - Standard - 303 Stainless

303 Stainless Standard Levelling Studded Mounts. Levelling adjusters. Good quality with value pricing. 303 stainless steel.

  • An expanded range may be available on special order. Please enquire.
  • Large diameter base for added support.
  • 15o off centre swivel for quick leveling on sloped surfaces.

Product Data

  • Thread Size (A) : M24 (24x3mm)
  • Base Diameter (D) 80.00 mm
  • Foot Height (C) 37.00 mm
  • Thread Length (F) 180.00 mm
  • Base Height (E) 28.00 mm
  • Overall Height 217.0 mm
  • Load Rating 1000 Kg
  • Hex Flats (B) 36.00 mm
  • Material Stainless Steel 304 (Similar to A2 or 18-8) HRB80
Country of Origin: JP

Product Compliance and Data

Additional Resources

    Cross References

    • Misumi® C-CFJFNS100-24-180
    • Misumi® C-CFJFNS80-24-180
    • CCFJFNS10024180
    • CCFJFNS8024180
    View full details

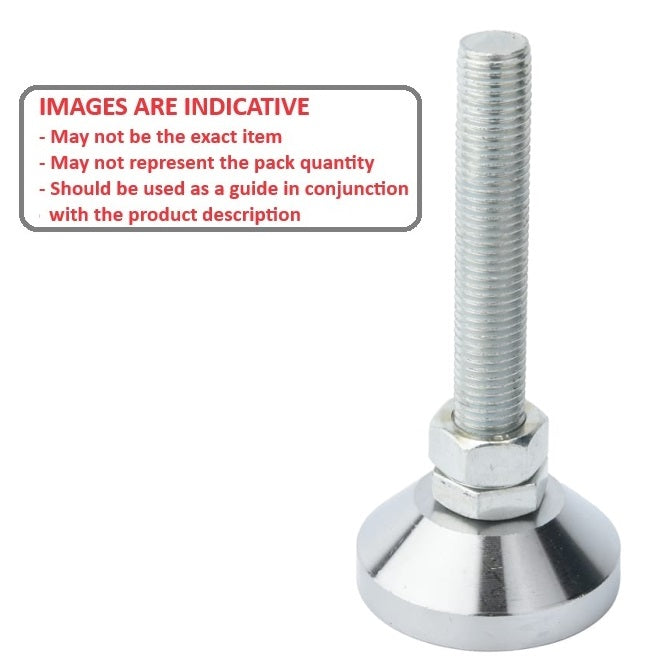

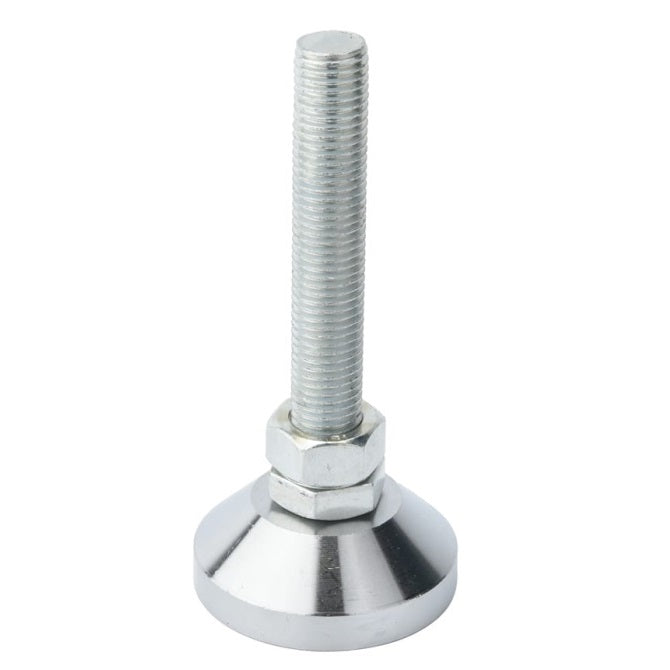

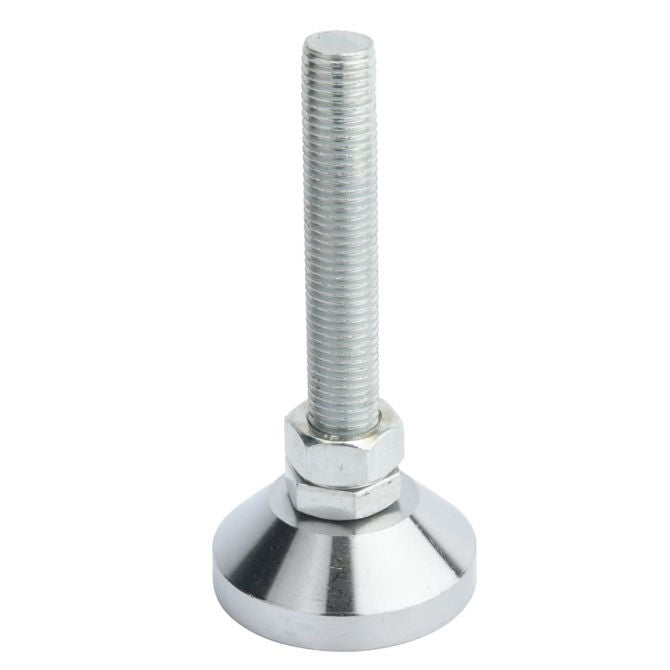

    MLM-240M-180-S4DiagramMLM-240M-180-S4Image
