MLM-240M-150-S4 - Datasheet
MBA
Category Information

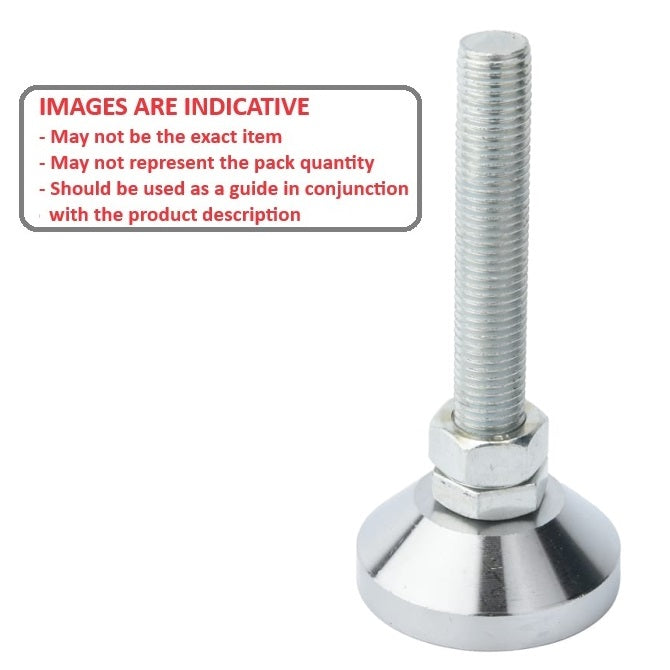

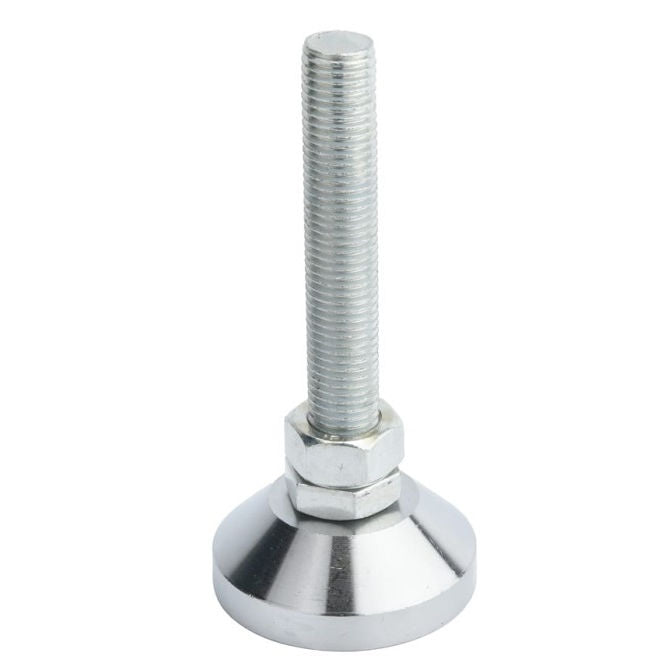

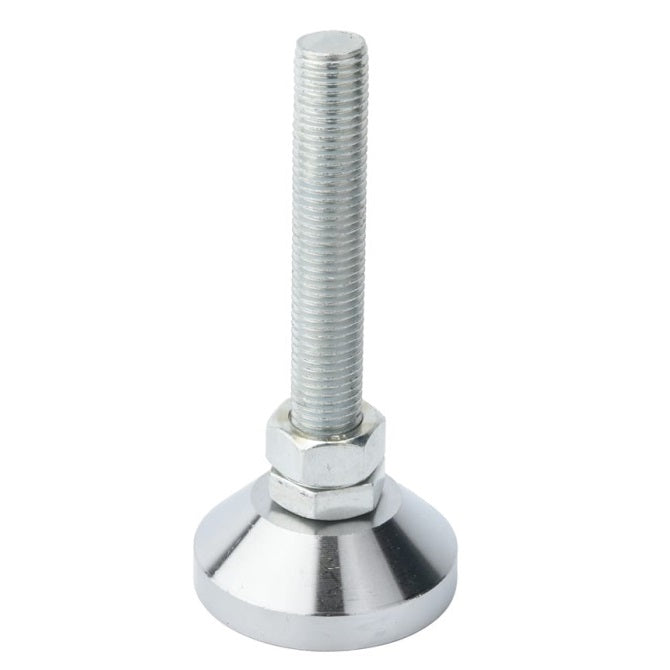

Mounts - Levelling Studded - Standard - 303 Stainless303 Stainless Standard Levelling Studded Mounts. Levelling adjusters. Good quality with value pricing. 303 stainless steel.
- An expanded range may be available on special order. Please enquire.
- Large diameter base for added support.
- 15o off centre swivel for quick leveling on sloped surfaces.
Product Data
- Thread Size (A) : M24 (24x3mm)
- Base Diameter (D)
80.00
mm
(Equiv. 3.15 in.) - Foot Height (C)
37.00
mm
(Equiv. 1.457 in.) - Thread Length (F) 150.00 mm
- Base Height (E) 28.00 mm
- Overall Height 187.0 mm
- Load Rating 1000 Kg
- Hex Flats (B) 36.00 mm
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-CFJFNS100-24-150
- Misumi C-CFJFNS80-24-150
- CCFJFNS10024150
- CCFJFNS8024150
