PLST-120-540-HLSL-022 - Datasheet
MBA
Category Information

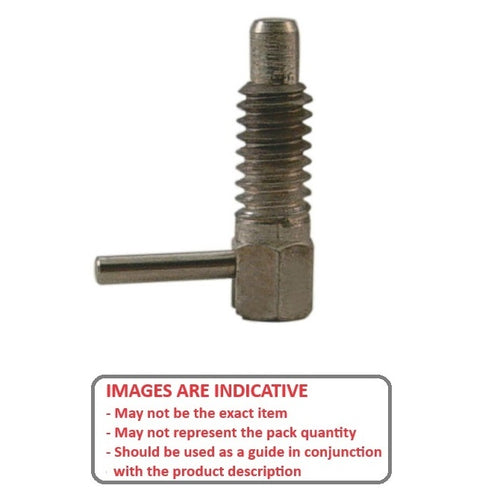

Plungers - Spring - L Handle - Locking - StainlessStainless Locking L Handle Spring Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
- A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
- Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
- Also known as ball plungers or spring-loaded pins.

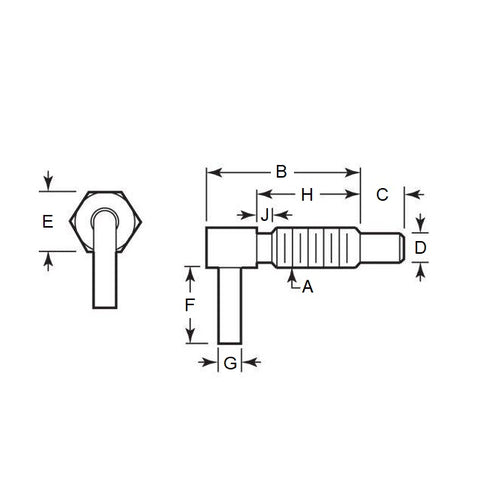

Product Data
- Thread Size (A) : M12 (12x1.75mm)
- Thread Length (B)
28.2
mm
(Equiv. 1.11 in.) - Initial Pressure (F1) 4.5 N
- Final Pressure (F2) 22.3 N
- Tip Diameter (D) 7.0 mm
- Tip Length (C) 19.0 mm
- Body Length (B) 54.0 mm
- Handle Diameter (G) 4.8 mm
- Handle Length (F) 25.4 mm
- J 3.8
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- 8501A59
- SFRM12
- SFRM-12
