PLST-120-540-HLCL-022 - Datasheet

MBA

Category Information

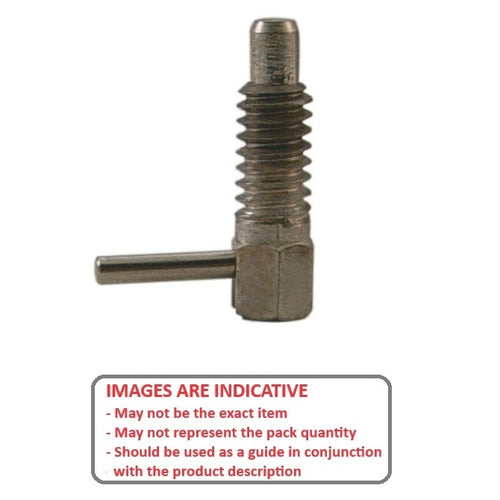

Plungers - Spring - L Handle - Locking - Steel

Steel Locking L Handle Spring Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

  • A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
  • Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
  • Also known as ball plungers or spring-loaded pins.

Product Data

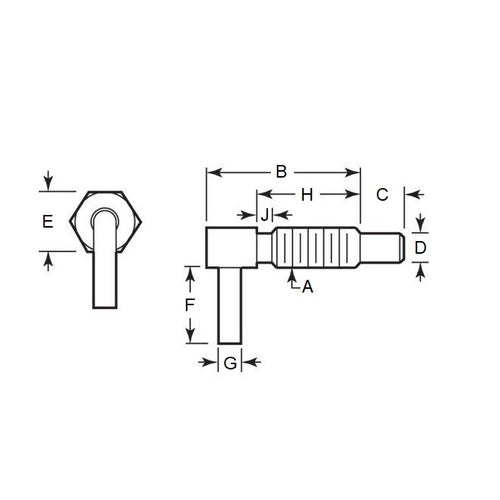

  • Thread Size (A) : M12 (12x1.75mm)
  • Thread Length (B) 28.2 mm
    (Equiv. 1.11 in.)
  • Initial Pressure (F1) 4.5 N
  • Final Pressure (F2) 22.3 N
  • Tip Diameter (D) 7.0 mm
  • Tip Length (C) 19.0 mm
  • Body Length (B) 54.0 mm
  • Handle Diameter (G) 4.8 mm
  • Handle Length (F) 25.4 mm
  • J 3.8
  • Material Steel
Country of Origin: US
