PLST-120M-320-C-041-A - Datasheet
MBA
Category Information

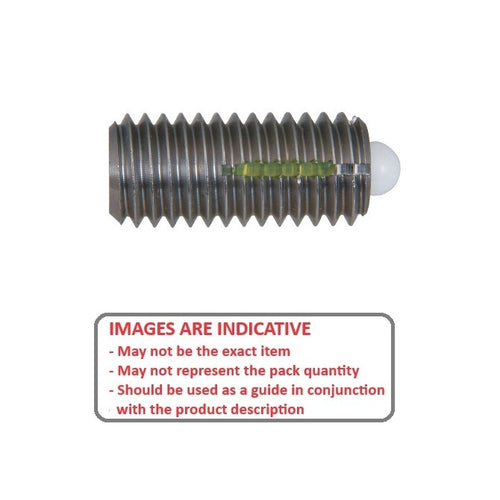

Plungers - Spring - No Handle - Steel - Acetal NoseAcetal Nose Steel No Handle Spring Plungers. Steel body and acetal nose
- A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
- Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
- Also known as ball plungers or spring-loaded pins.
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (A) : M12 (12x1.75mm)
- Thread Length (B)
32.0
mm
(Equiv. 1.26 in.) - Initial Pressure (F1) 12.0 N
- Final Pressure (F2) 41.1 N
- Tip Diameter (D) 6.3 mm
- Tip Length (C) 6.0 mm
- Body Length (B) 32.0 mm
- Drive 6.0mm Hex
- Material Steel Body with Acetal Nose
Product Compliance and Data
Additional Resources
Cross References
- PLST120320C041A
