MLM-120M-100-S4 - Datasheet
MBA
Category Information

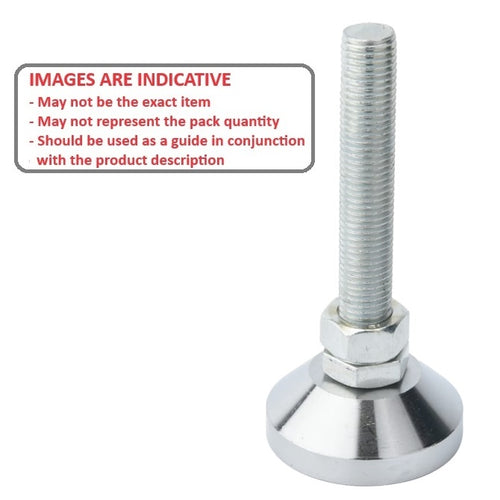

Mounts - Levelling Studded - Standard - 303 Stainless303 Stainless Standard Levelling Studded Mounts. Levelling adjusters. Good quality with value pricing. 303 stainless steel.
- An expanded range may be available on special order. Please enquire.
- Large diameter base for added support.
- 15o off centre swivel for quick leveling on sloped surfaces.
Product Data
- Thread Size (A) : M12 (12x1.75mm)
- Base Diameter (D)
60.00
mm
(Equiv. 2.362 in.) - Foot Height (C)
29.00
mm
(Equiv. 1.142 in.) - Thread Length (F) 100.00 mm
- Base Height (E) 20.00 mm
- Overall Height 129.0 mm
- Load Rating 600 Kg
- Hex Flats (B) 19.00 mm
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-CFJFNS12-100
- Misumi C-CFJFNS60-12-100
- CCFJFNS6012100
- CCFJFNS12100
