MLM-120M-150-CZRP - Datasheet
MBA
Category Information

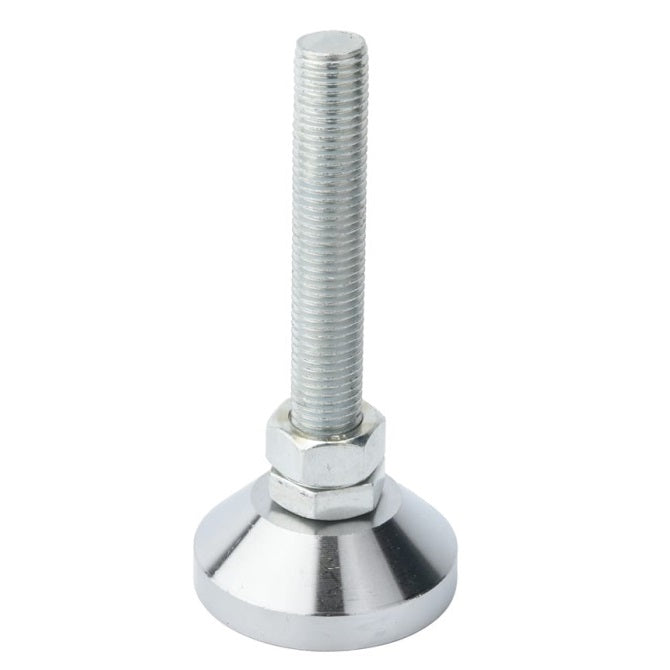

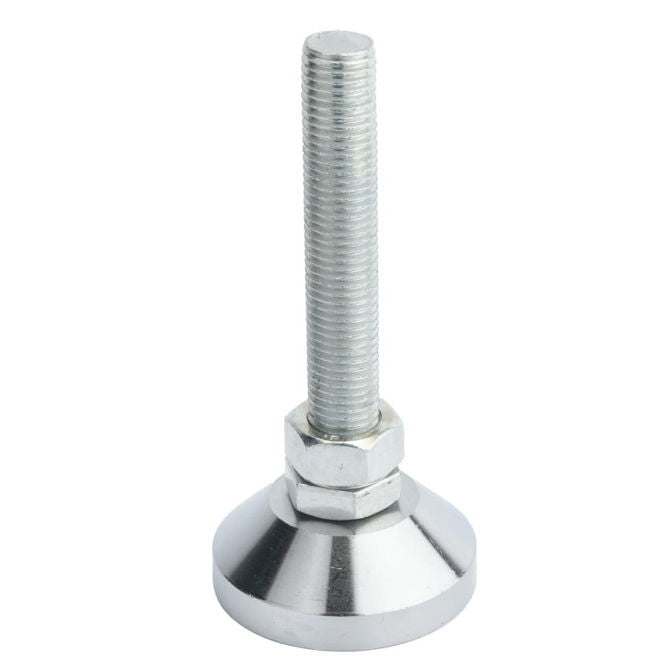

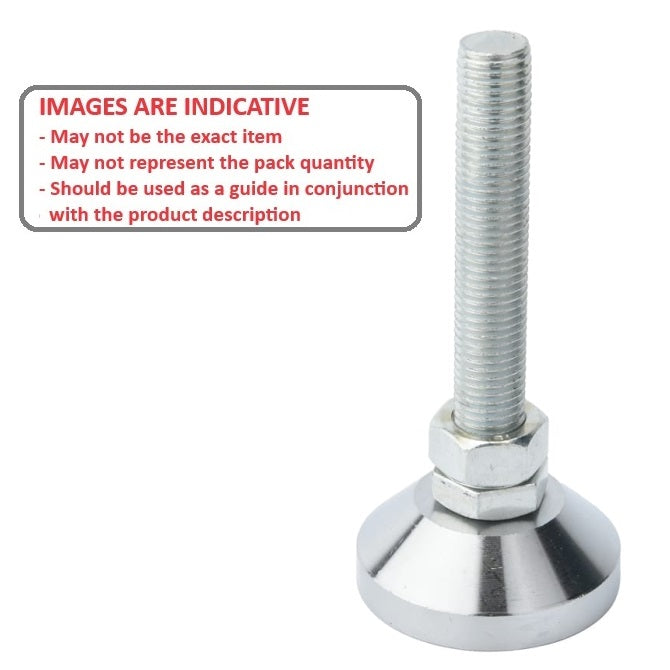

Mounts - Levelling Studded - Standard - PlatedPlated Standard Levelling Studded Mounts. Levelling adjusters. Good quality with value pricing. Hardened ball for high load ratings and excellent wear characteristics.
- An expanded range may be available on special order. Please enquire.
- Large diameter base for added support.
- 15o off centre swivel for quick leveling on sloped surfaces.
Product Data

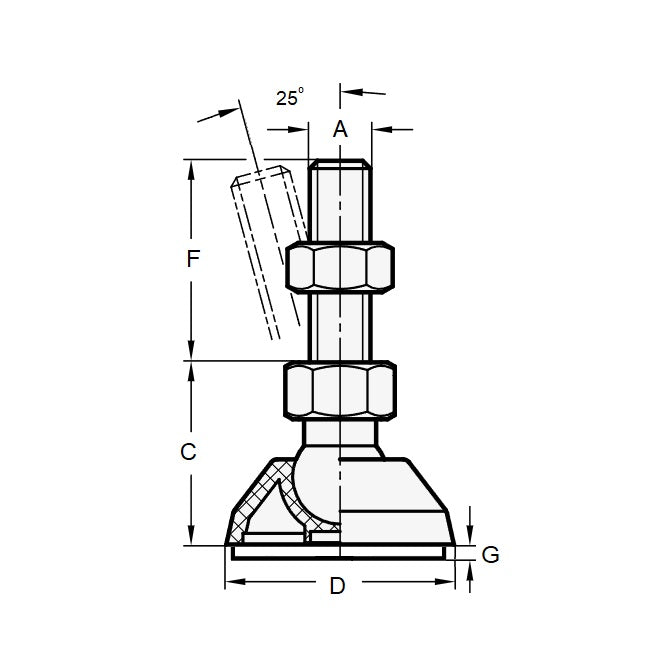

- Thread Size (A) : M12 (12x1.75mm)
- Base Diameter (D)
60.00
mm
(Equiv. 2.362 in.) - Foot Height (C)
29.00
mm
(Equiv. 1.142 in.) - Thread Length (F) 150.00 mm
- Base Height (E) 20.00 mm
- Overall Height 179.0 mm
- Load Rating 600 Kg
- Finish Zinc Plated
- Hex Flats (B) 19.00 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-CFJFN12-150
- Misumi C-CFJFN60-12-150
- CCFJFN12150
- CCFJFN6012150
