KF120M-050-8L - Datasheet

MBA

Category Information

Knobs - Lobe - Eight Lobe - Female

Female Eight Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : M12 (12x1.75mm)
  • Head Diameter (A) 50 mm
    (Equiv. 1.969 in.)
  • Thread Length 21 mm
    (Equiv. 0.827 in.)
  • Colour Black
  • Hub Diameter © 25.00 mm
  • Hub Length (D) 25.000 mm
  • Knob Height (B) 14.00 mm
  • Material Phenolic and Brass
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi C-NBJF12
  • CNBJF12
View full details

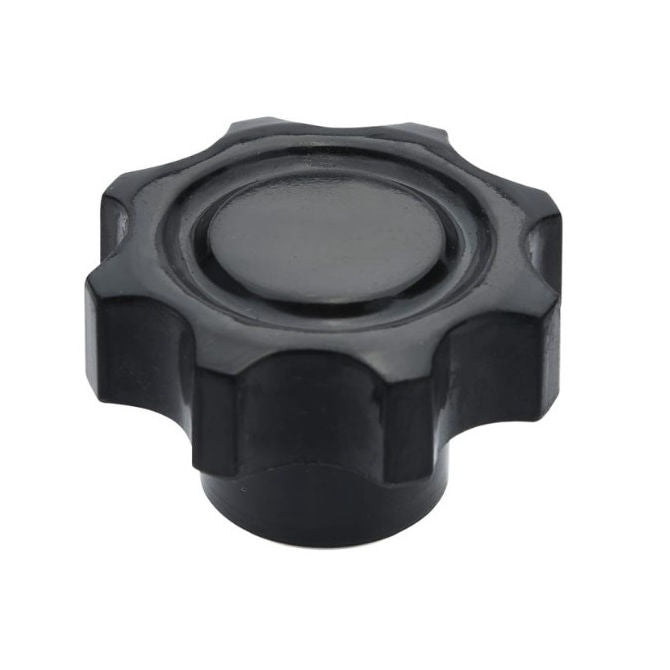

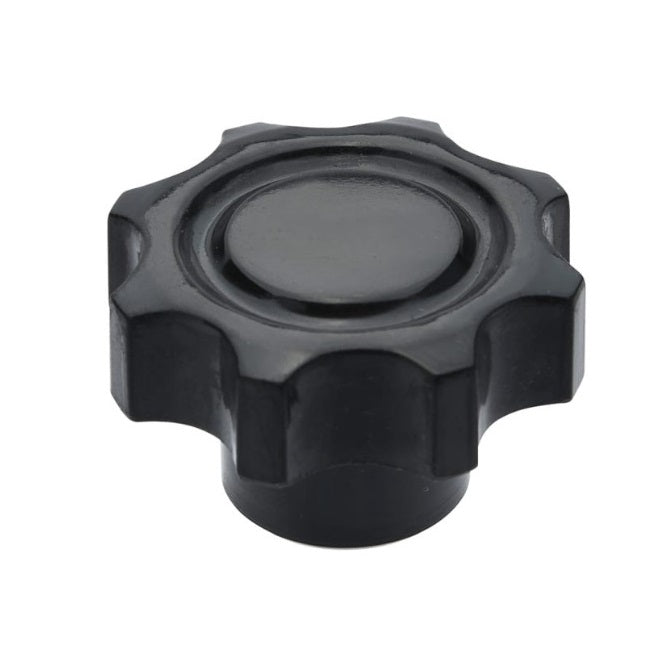

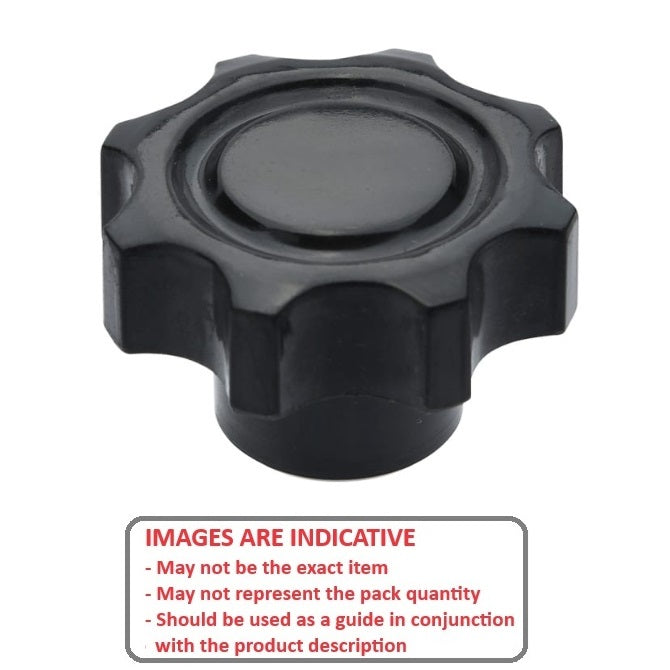

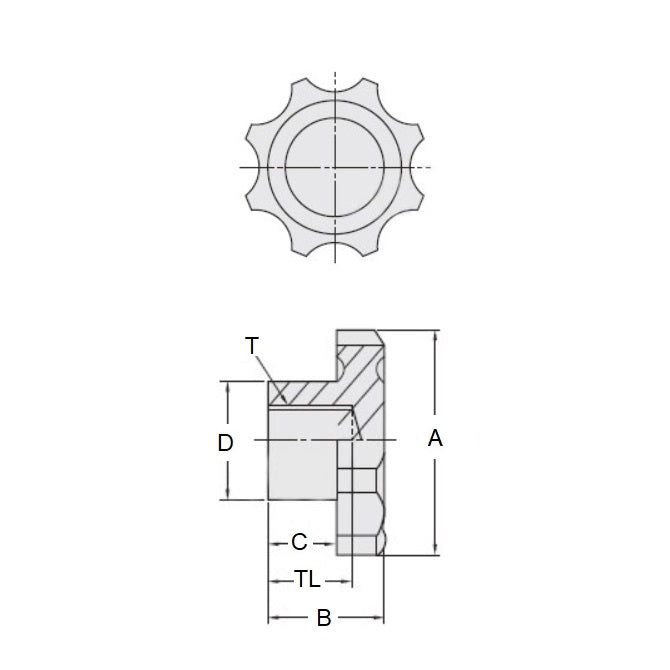

KF120M-050-8LDiagramKF120M-050-8LImage
