PLST-100-200-HCL-009 - Datasheet
MBA
Category Information

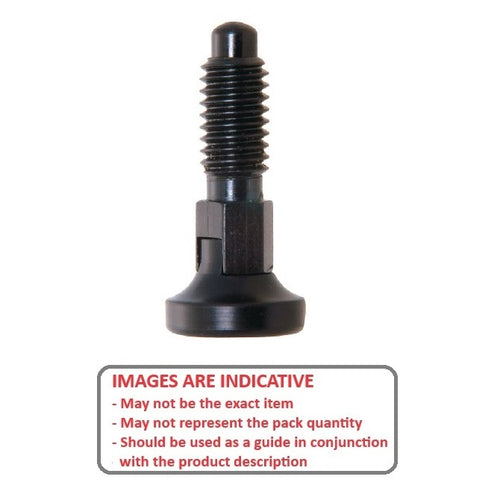

Plungers - Spring - Acetal Handle - Locking - SteelSteel Locking Acetal Handle Spring Plungers. Black acetal plastic handle . Black oxide coated steel body and plunger.
- A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
- Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
- Also known as ball plungers or spring-loaded pins.
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data

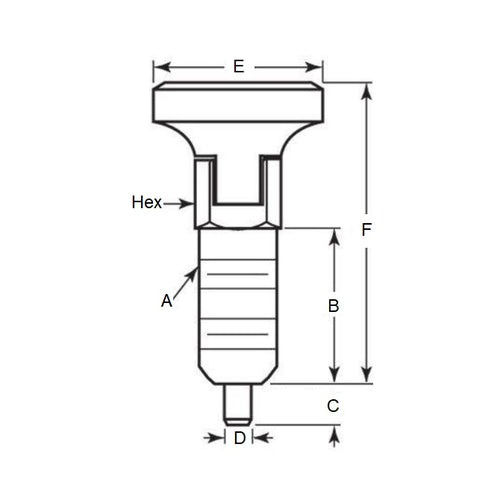

- Thread Size (A) : M10 (10x1.5mm)
- Thread Length (B)
20.0
mm
(Equiv. 0.787 in.) - Initial Pressure (F1) 1.0 N
- Final Pressure (F2) 9.0 N
- Tip Diameter (D) 6.0 mm
- Tip Length (C) 5.0 mm
- Head Diameter (E) 19.0 mm
- Overall Length (F) 38.0
- Across Flats 10.0
- Material Steel with Acetal
Product Compliance and Data
Additional Resources
Cross References
- PRT15
- PRT-15
