MLM-100M-100-CZRP - Datasheet
MBA
Category Information

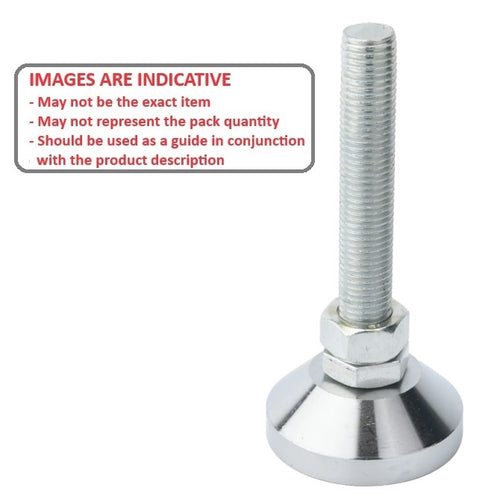

Mounts - Levelling Studded - Standard - PlatedPlated Standard Levelling Studded Mounts. Levelling adjusters. Good quality with value pricing. Hardened ball for high load ratings and excellent wear characteristics.
- An expanded range may be available on special order. Please enquire.
- Large diameter base for added support.
- 15o off centre swivel for quick leveling on sloped surfaces.
Product Data
- Thread Size (A) : M10 (10x1.5mm)
- Base Diameter (D)
60.00
mm
(Equiv. 2.362 in.) - Foot Height (C)
28.00
mm
(Equiv. 1.102 in.) - Thread Length (F) 100.00 mm
- Base Height (E) 19.00 mm
- Overall Height 128.0 mm
- Load Rating 500 Kg
- Finish Zinc Plated
- Hex Flats (B) 17.00 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-CFJFN10-100
- Misumi C-CFJFN60-10-100
- Misumi C-CFJFNV10-100
- CCFJFN10100
- CCFJFN6010100
- CCFJFNV10100
