KF100M-040-8L - Datasheet

MBA

Category Information

Knobs - Lobe - Eight Lobe - Female

Female Eight Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : M10 (10x1.5mm)
  • Head Diameter (A) 40 mm
    (Equiv. 1.575 in.)
  • Thread Length 17 mm
    (Equiv. 0.669 in.)
  • Colour Black
  • Hub Diameter © 25.00 mm
  • Hub Length (D) 21.000 mm
  • Knob Height (B) 14.00 mm
  • Material Phenolic and Brass
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi C-NBJF10
  • CNBJF10
View full details

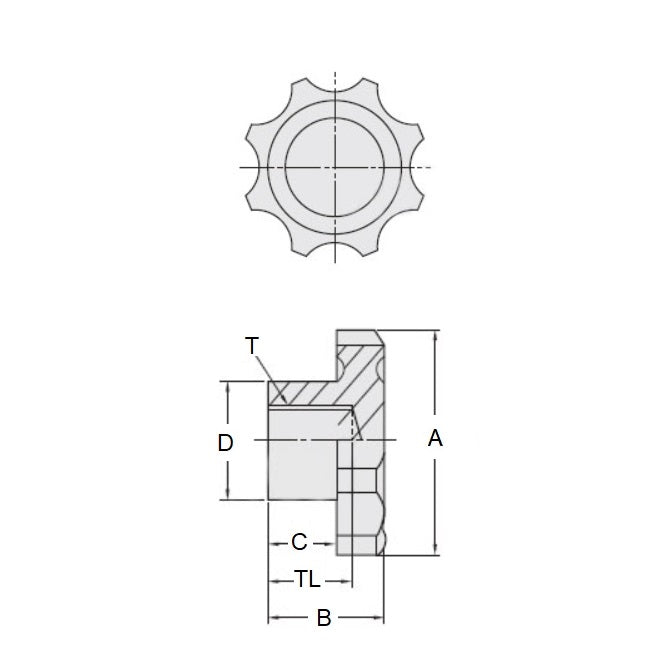

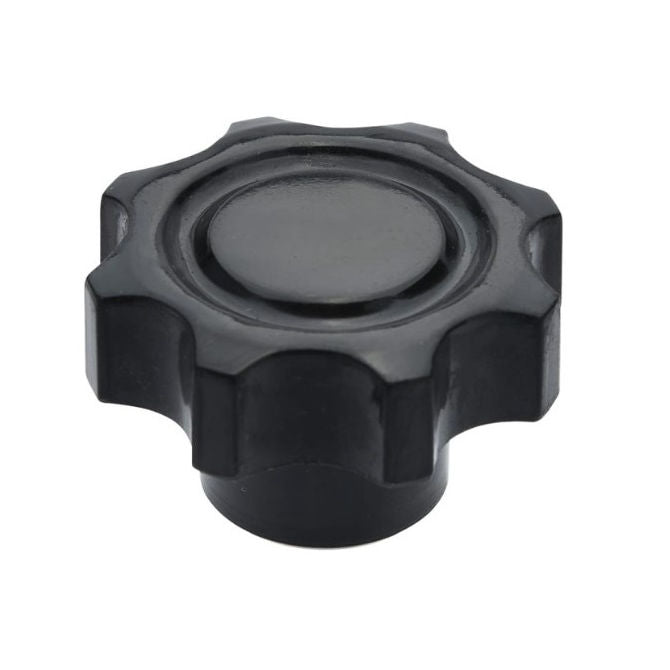

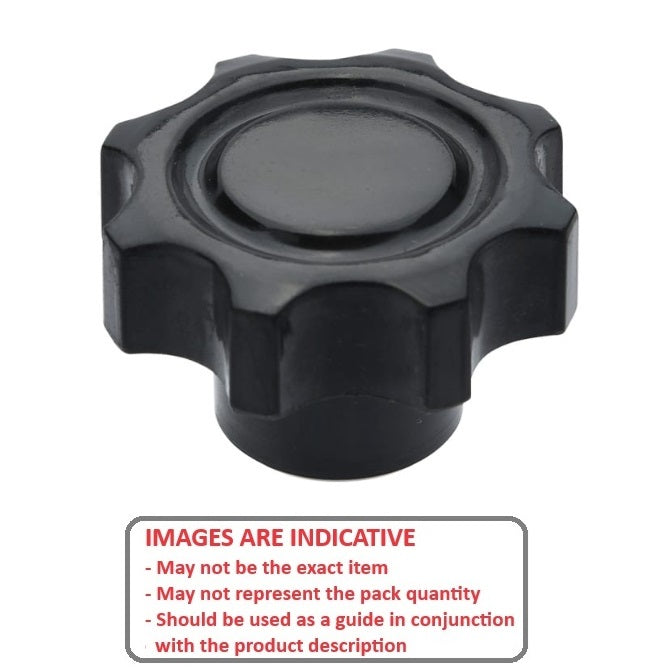

KF100M-040-8LDiagramKF100M-040-8LImage
