IN-RIV-100M-079-R - Datasheet

MBA

Category Information

Inserts - Rivet Nuts - Klik - Ribbed

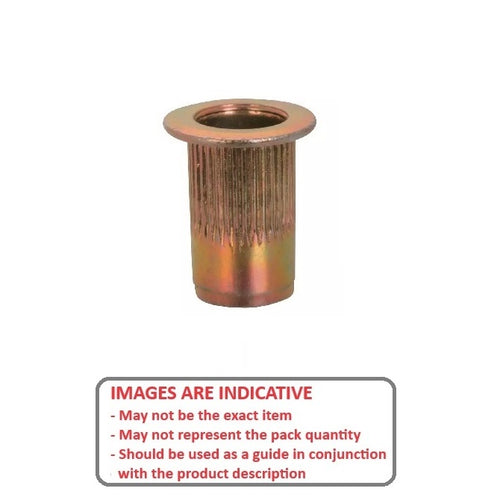

Ribbed Klik Rivet Nuts Inserts. Individual Inserts for use with the Klik Thread Setter Tool

  • These blind threaded inserts offer strong torque and pull out characteristics. Especially effective in sheet metal and other thin material.
  • Insert is placed into the hole in the parent material and crimped up with the installation tool.
  • Installs from one side - no tapping required. Installs almost flush eliminating the need for countersinking.
  • Made from plated steel.

Product Data

  • Internal Thread : M10 (10x1.5mm)
  • Drill Hole Size 13.5 mm
    (Equiv. 0.531 in.)
  • Grip Range 3.80 -7.90 mm
    (Equiv. 0.15 in.)

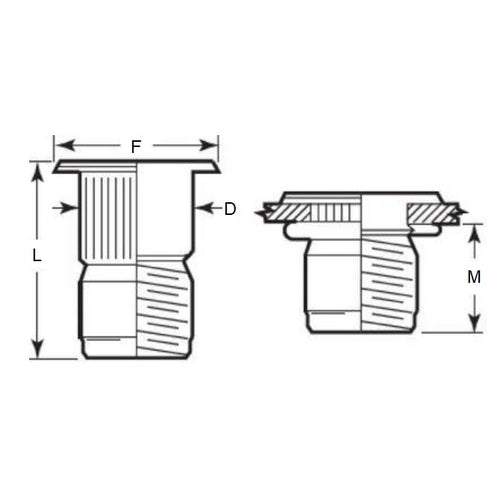

  • Body Diameter (D) 13.45 mm
  • Flange Diameter (F) 17 mm
  • L 20.400 mm
  • M 11.000 mm
  • 3.80 -7.90
Country of Origin: US
