WG1L-100-050-080-ALB - Datasheet
MBA
Category Information

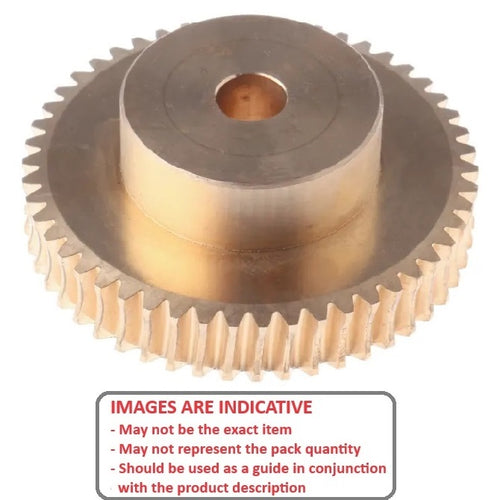

Gears - Worm - Module 1.0Module 1.0 Worm Gears. This is the main category in this series
- Worms and Gears must be chosen from the same pitch, direction and lead angle match. DP is Diametrical Pitch, which is an imperial standard.
- A single start worm and gear will provide a ratio equivalent to the number of teeth on the gear. A double start worm and gear will provide a ratio of half the number of teeth on the gear.
- If there is no matching worm for a stocked gear, please contact us for a special procurement. An expanded range may be available on special order. Please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Pitch : Module 1.0
- Teeth 50
- Lead Angle 3 Deg 35 Min
- Direction Left Hand

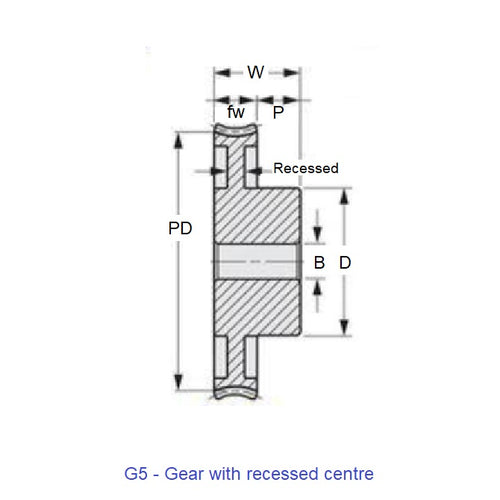

- Bore (B) 8.000
- Overall Length (l) 18.000
- Pitch Diameter (C) 50.00 mm
- Face Width (fw) 10.000 mm
- Bore Type Finished
- Hub Diameter (Dh) 30.00 mm
- Locking Type Set Screw
- Material Aluminium Bronze
Product Compliance and Data
Additional Resources
Cross References
- WG1L10105010HS0800ALB
