WG1R48-030-05HS0476-BRZ - Datasheet
MBA
Category Information
Gears - Worm - 48DP48DP Worm Gears. This is the main category in this series
- Worms and Gears must be chosen from the same pitch, direction and lead angle match. DP is Diametrical Pitch, which is an imperial standard.
- A single start worm and gear will provide a ratio equivalent to the number of teeth on the gear. A double start worm and gear will provide a ratio of half the number of teeth on the gear.
- If there is no matching worm for a stocked gear, please contact us for a special procurement. An expanded range may be available on special order. Please enquire.

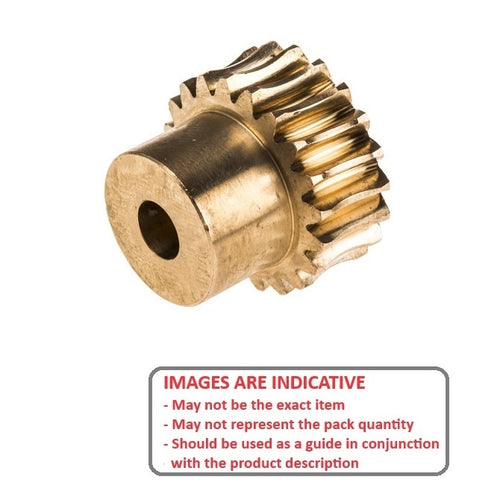

Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

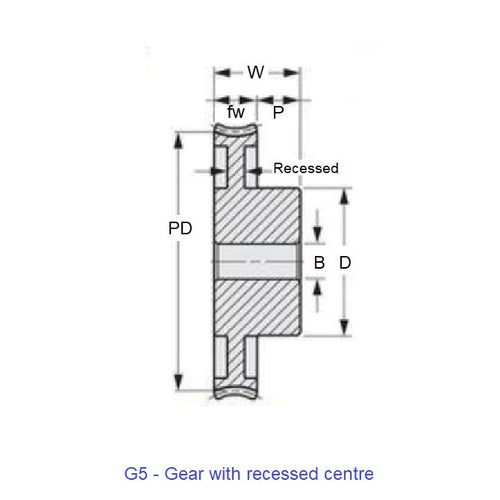

- Pitch : 48DP
- Teeth 30
- Lead Angle 3 Deg 45 Min with 14.5 Deg Pressure Angle
- Direction Right Hand
- Bore (B) 4.757
- Overall Length (l) 10.351
- Pitch Diameter (C) 15.88 mm
- Face Width (fw) 4.762 mm
- Bore Type Finished
- Hub Diameter (Dh) 9.52 mm
- Locking Type Set Screw
- Material Bronze
Product Compliance and Data
Additional Resources
Cross References
- WG1R48103005HS0476BRZ
