Miniature Bearings Australia
DJK-044 - Datasheet
MBA
Category Information

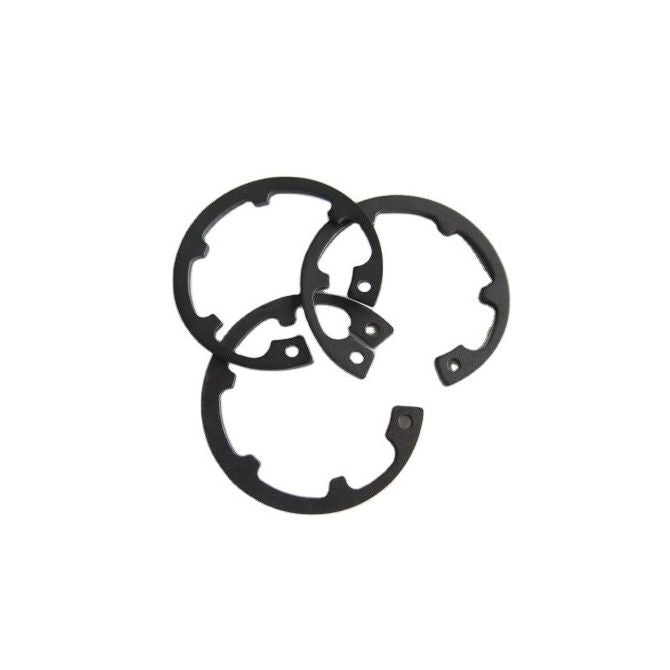

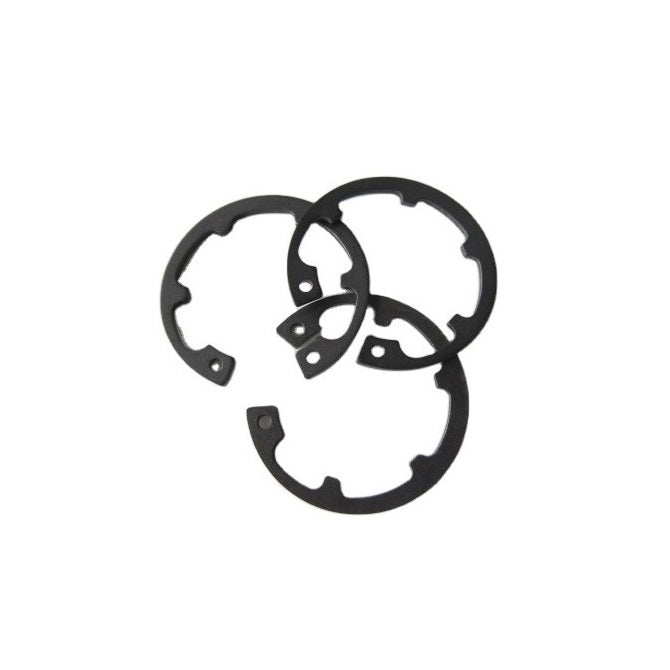

Retaining Rings - Internal - Circlips - TabbedTabbed Circlips Internal Retaining Rings. DIN984 / D2000 / Seeger JK. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Internal tabs are concentrically positioned for a concealed assembly.
- Tabs act as spacers for securing machine components.
Product Data
- Housing Bore (B)
:
44.00
mm
(Equiv. 1.732 in.) - Clip Thickness (T)
1.75
mm
+ 0.00 / - 0.25
(Equiv. 0.069 in.) - Groove Dia. (Dg)
46.75
mm
+ 0.00 / - 0.06
(Equiv. 1.841 in.) - Approx. Loose Circlip OD (Dr) 47.11 - 48.40 mm
- Radial Wall Max. (b) 4.20 mm
- Groove Width (W) 1.85 mm
- Tool PRS-I023
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- 2000-044
- 2000044
- D2000-044
- D2000044
