DJK-033 - Datasheet
MBA
Category Information

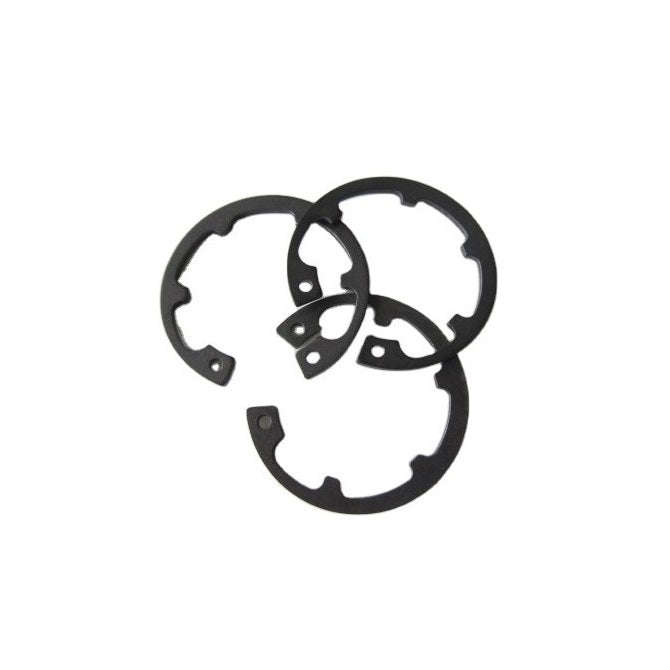

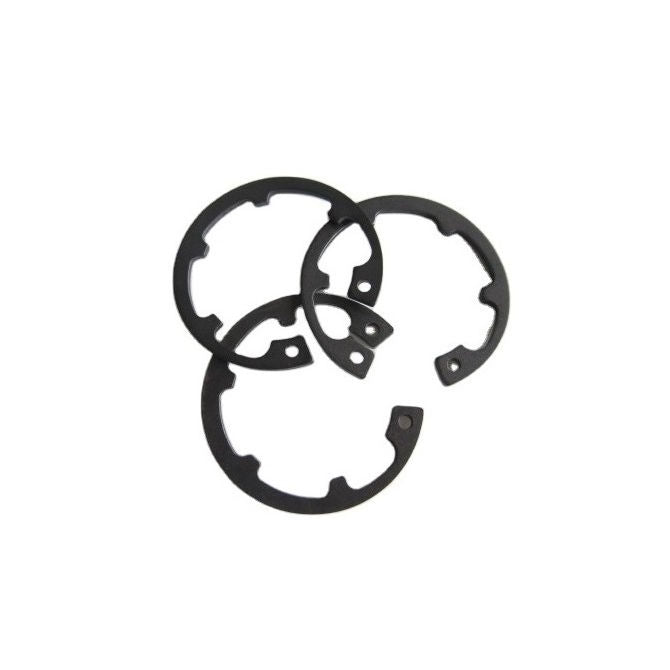

Retaining Rings - Internal - Circlips - TabbedTabbed Circlips Internal Retaining Rings. DIN984 / D2000 / Seeger JK. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Internal tabs are concentrically positioned for a concealed assembly.
- Tabs act as spacers for securing machine components.
Product Data
- Housing Bore (B)
:
33.00
mm
(Equiv. 1.299 in.) - Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.25
(Equiv. 0.047 in.) - Groove Dia. (Dg)
34.95
mm
+ 0.00 / - 0.06
(Equiv. 1.376 in.) - Approx. Loose Circlip OD (Dr) 35.25 - 36.00 mm
- Radial Wall Max. (b) 3.30 mm
- Groove Width (W) 1.30 mm
- Tool PRS-I018
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- 2000033
- 2000-033
- D2000033
- D2000-033
