DJK-031 - Datasheet
MBA
Category Information

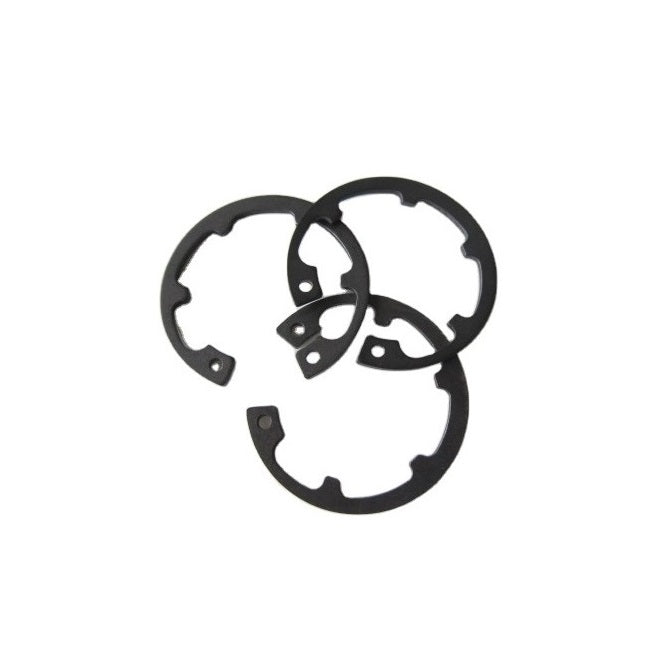

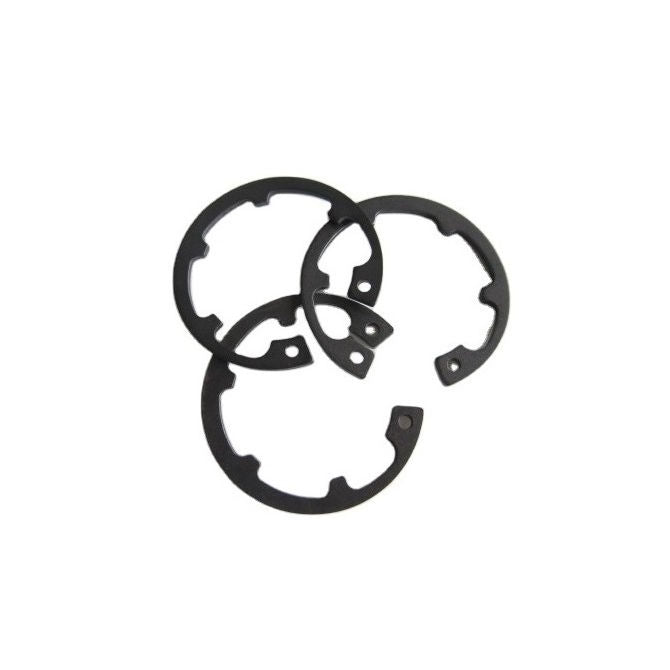

Retaining Rings - Internal - Circlips - TabbedTabbed Circlips Internal Retaining Rings. DIN984 / D2000 / Seeger JK. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Internal tabs are concentrically positioned for a concealed assembly.
- Tabs act as spacers for securing machine components.
Product Data
- Housing Bore (B)
:
31.00
mm
(Equiv. 1.22 in.) - Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.25
(Equiv. 0.047 in.) - Groove Dia. (Dg)
32.95
mm
+ 0.00 / - 0.06
(Equiv. 1.297 in.) - Approx. Loose Circlip OD (Dr) 33.15 - 33.90 mm
- Radial Wall Max. (b) 3.20 mm
- Groove Width (W) 1.30 mm
- Tool PRS-I018
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- 2000031
- 2000-031
- D2000-031
- D2000031
