DJK-028 - Datasheet

MBA

Category Information

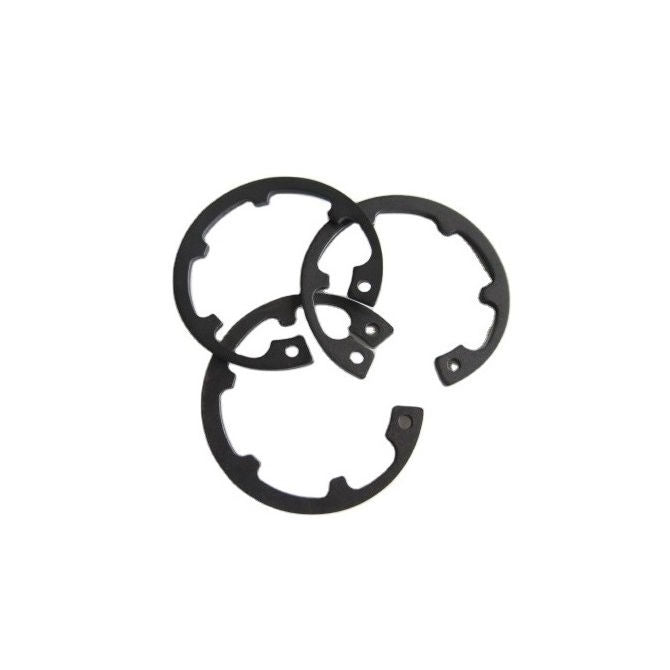

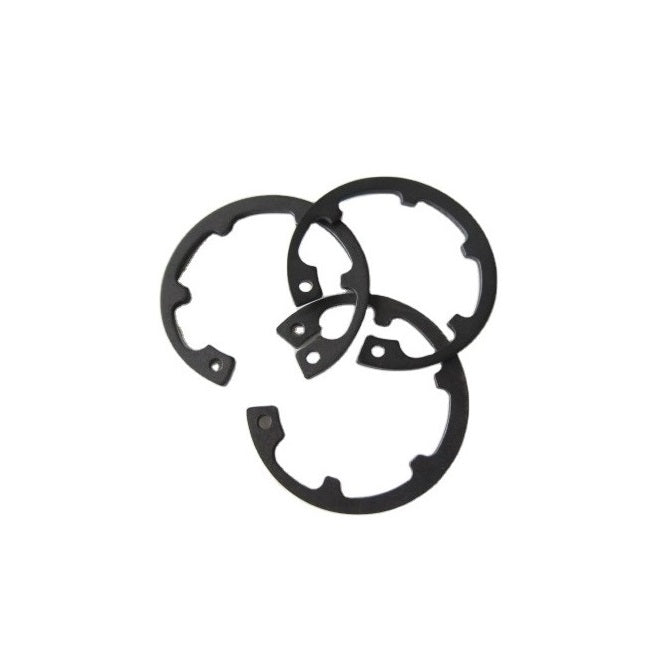

Retaining Rings - Internal - Circlips - Tabbed

Tabbed Circlips Internal Retaining Rings. DIN984 / D2000 / Seeger JK. Retaining rings. Snap Rings (USA).

  • An expanded range may be available on special order. Please enquire.
  • Internal tabs are concentrically positioned for a concealed assembly.
  • Tabs act as spacers for securing machine components.

Product Data

  • Housing Bore (B) : 28.00 mm
    (Equiv. 1.102 in.)
  • Clip Thickness (T) 1.20 mm + 0.00 / - 0.21
    (Equiv. 0.047 in.)
  • Groove Dia. (Dg) 29.61 mm + 0.00 / - 0.06
    (Equiv. 1.166 in.)
  • Approx. Loose Circlip OD (Dr) 29.85 mm
  • Radial Wall Max. (b) 3.00 mm
  • Groove Width (W) 1.30 mm
  • Tool PRS-I018
  • Material Carbon Spring Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Seeger JK28-BLS
  • Seeger JK28X1.2
  • 2000028
  • 2000-028
  • JK28BLS
  • D2000-028
  • D2000028
