DJK-025 - Datasheet

MBA

Category Information

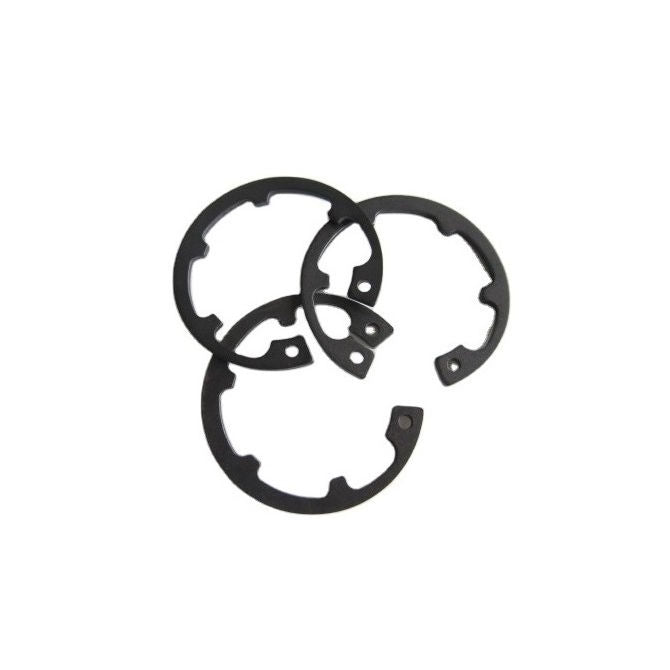

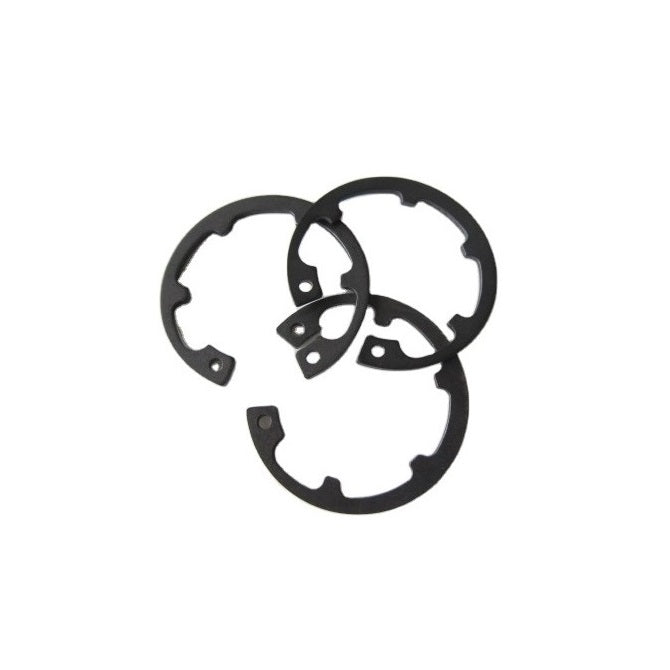

Retaining Rings - Internal - Circlips - Tabbed

Tabbed Circlips Internal Retaining Rings. DIN984 / D2000 / Seeger JK. Retaining rings. Snap Rings (USA).

  • An expanded range may be available on special order. Please enquire.
  • Internal tabs are concentrically positioned for a concealed assembly.
  • Tabs act as spacers for securing machine components.

Product Data

  • Housing Bore (B) : 25.00 mm
    (Equiv. 0.984 in.)
  • Clip Thickness (T) 1.20 mm + 0.00 / - 0.21
    (Equiv. 0.047 in.)
  • Groove Dia. (Dg) 26.41 mm + 0.00 / - 0.06
    (Equiv. 1.04 in.)
  • Approx. Loose Circlip OD (Dr) 26.69 mm
  • Radial Wall Max. (b) 2.80 mm
  • Groove Width (W) 1.30 mm
  • Tool PRS-I018
  • Material Carbon Spring Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Seeger JK25-BLS
  • Seeger JK25X1.2
  • 2000025
  • 2000-025
  • JK25BLS
  • D2000-025
  • D2000025
