CCI-06700-S15 - Datasheet
MBA
Category Information

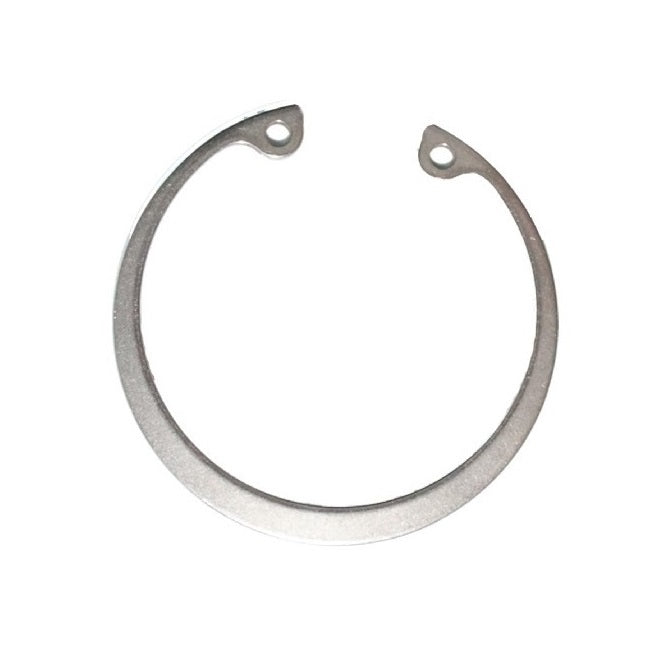

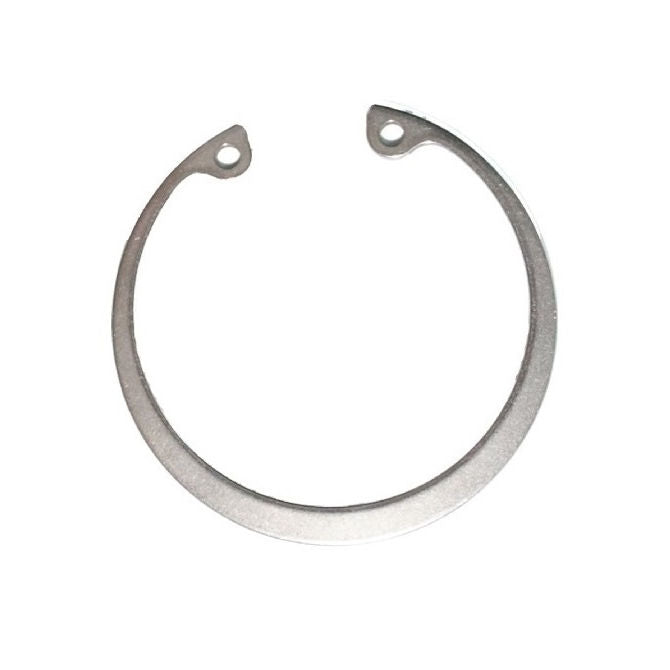

Retaining Rings - Internal - Circlips - Standard - Stainless SteelStainless Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- PH15-7 Mo Stainless Steel.
- Tolerances on request.
Product Data
- Housing Bore (B)
:
67.00
mm
(Equiv. 2.638 in.) - Clip Thickness (T)
2.50
mm
+ 0.30 / - 0.00
(Equiv. 0.098 in.) - Groove Dia. (Dg)
70.00
mm
+ 0.00 / - 0.07
(Equiv. 2.756 in.) - Approx. Loose Circlip OD (Dr) 72.50 mm + 1.10 / - 0.46
- Groove Width (W) 2.65 mm + 0.13 / - 0.00
- Clearance in Bore (C) 50.80 mm
- Clearance in Groove (C1) 54.60 mm
- Min. Lug Diameter (h) 3.00 mm
- Min. Extension (n) 4.50
- Standard DIN472
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- Ellison 472-067-SS
- Bossard BN-822-067-SS
- Waldes D1300-067-SS
- NoCor DHO-067-SS
- Rotor Clip DHO-067-SS
- Seeger J-067-SS
- Seeger J67X2.5-411
- D13000670KSF
- D1300-0670KSF
- D1300067SS
- J067SS
- J67X25411
- DHO067SS
- 472067SS
- BN822067SS
