CCI-05000-C-V - Datasheet
MBA
Category Information

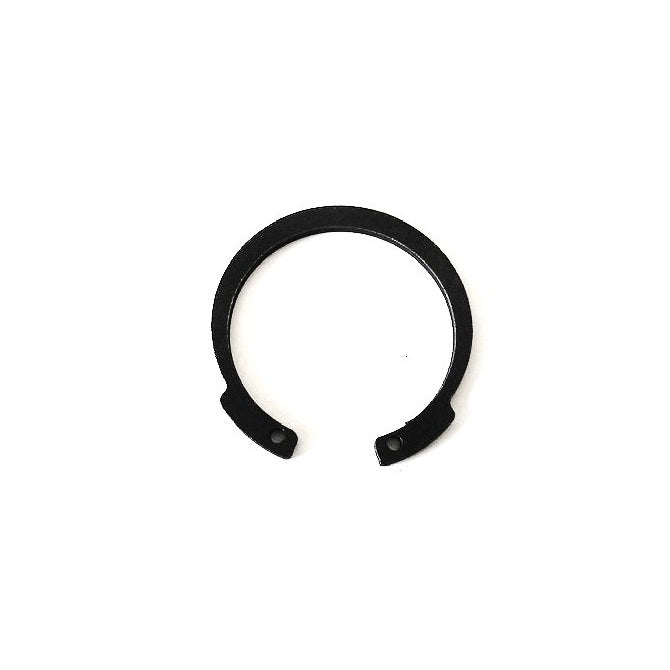

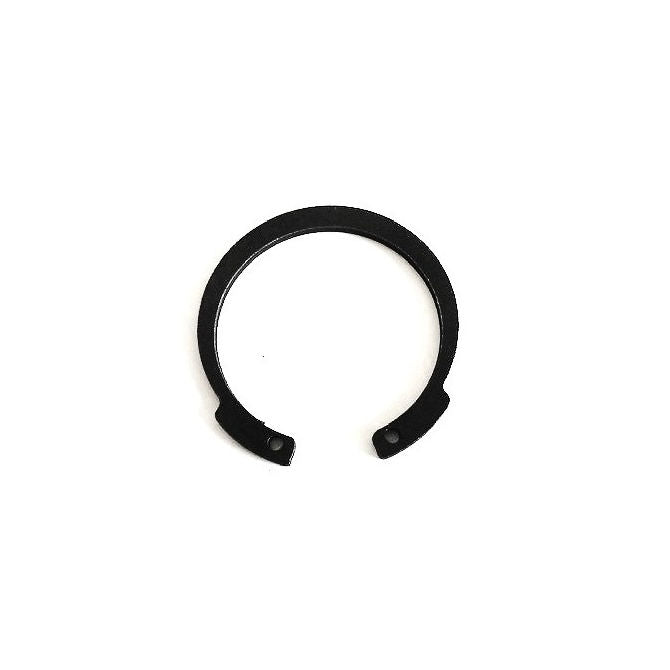

Retaining Rings - Internal - Circlips - InvertedInverted Circlips Internal Retaining Rings. M1308 / JV / INTV / BN830. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Inverted lugs seat into the groove for better clearance and cleaner appearance.
- Good for shielded bearings that pass tightly through the bore or housing.
- Use recommended installation pliers.
Product Data
- Housing Bore (B)
:
50.00
mm
(Equiv. 1.969 in.) - Clip Thickness (T)
2.00
mm
+ 0.30 / - 0.00
(Equiv. 0.079 in.) - Groove Dia. (Dg)
53.00
mm
+ 0.00 / - 0.07
(Equiv. 2.087 in.) - Approx. Loose Circlip OD (Dr) 54.20 mm + 1.10 / - 0.46
- Radial Wall Max (S) 5.0 - 5.2
- Groove Width (W) 2.15 mm
- Tool PRS-I018
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- Bossard BN830-050
- Ellison INTV-050
- Seeger JV-050
- NoCor MDHOI-050
- MDHOI050
- JV050
- INTV050
- M1308050
- M1308-050
- BN830050
