CCI-04800-C-V - Datasheet
MBA
Category Information

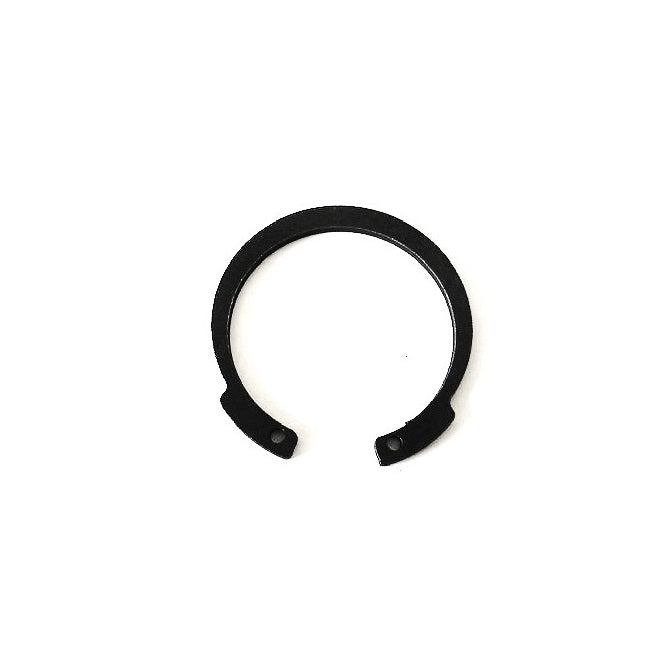

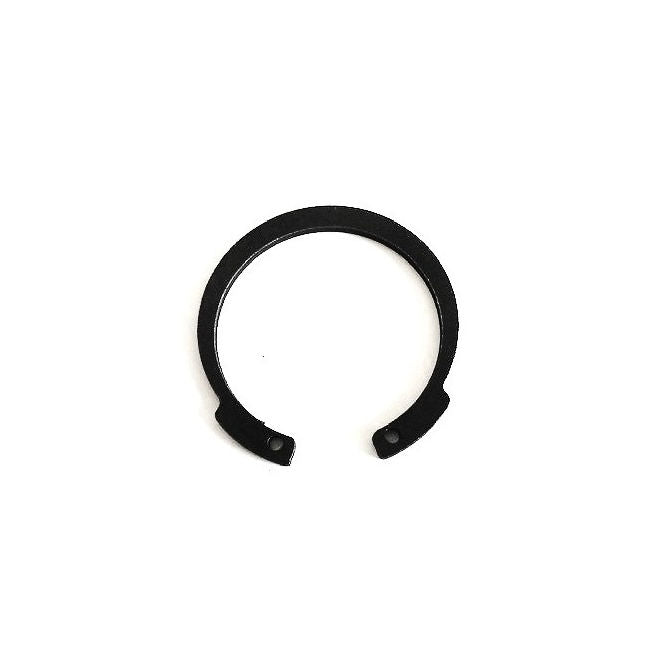

Retaining Rings - Internal - Circlips - InvertedInverted Circlips Internal Retaining Rings. M1308 / JV / INTV / BN830. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Inverted lugs seat into the groove for better clearance and cleaner appearance.
- Good for shielded bearings that pass tightly through the bore or housing.
- Use recommended installation pliers.
Product Data
- Housing Bore (B)
:
48.00
mm
(Equiv. 1.89 in.) - Clip Thickness (T)
1.75
mm
+ 0.30 / - 0.00
(Equiv. 0.069 in.) - Groove Dia. (Dg)
50.50
mm
+ 0.00 / - 0.06
(Equiv. 1.988 in.) - Approx. Loose Circlip OD (Dr) 51.50 mm + 1.10 / - 0.46
- Radial Wall Max (S) 4.5 - 4.7
- Groove Width (W) 1.85 mm
- Tool PRS-I018
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- Bossard BN830-048
- Ellison INTV-048
- Seeger JV-048
- NoCor MDHOI-048
- MDHOI048
- JV048
- INTV048
- M1308048
- M1308-048
- BN830048
