CCI-03300-C-V - Datasheet
MBA
Category Information

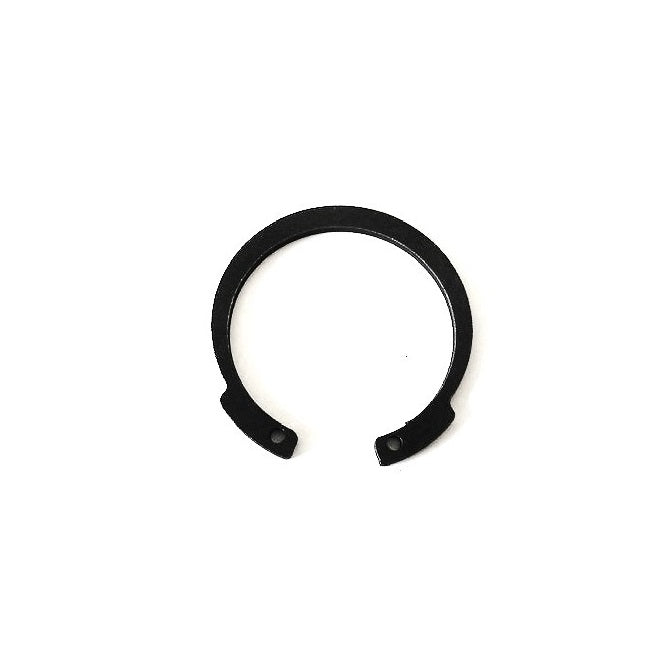

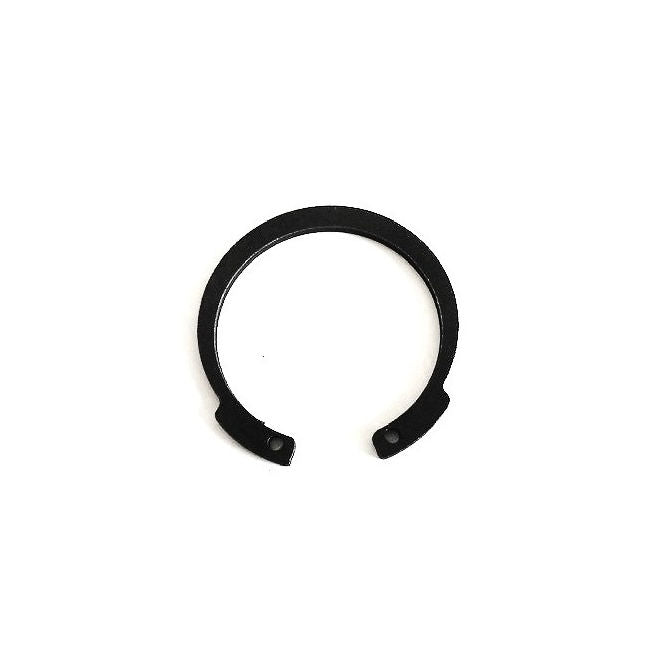

Retaining Rings - Internal - Circlips - InvertedInverted Circlips Internal Retaining Rings. M1308 / JV / INTV / BN830. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Inverted lugs seat into the groove for better clearance and cleaner appearance.
- Good for shielded bearings that pass tightly through the bore or housing.
- Use recommended installation pliers.
Product Data
- Housing Bore (B)
:
33.00
mm
(Equiv. 1.299 in.) - Clip Thickness (T)
1.20
mm
+ 0.25 / - 0.00
(Equiv. 0.047 in.) - Groove Dia. (Dg)
34.78
mm
+ 0.00 / - 0.06
(Equiv. 1.369 in.) - Approx. Loose Circlip OD (Dr) 35.50 mm + 0.50 / - 0.25
- Radial Wall Max (S) 3.2 - 3.3
- Groove Width (W) 1.30 mm
- Tool PRS-I011
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- Bossard BN830-033
- Ellison INTV-033
- Seeger JV-033
- NoCor MDHOI-033
- MDHOI033
- JV033
- INTV033
- M1308033
- M1308-033
- M13080330APP
- M1308-0330APP
- BN830033
