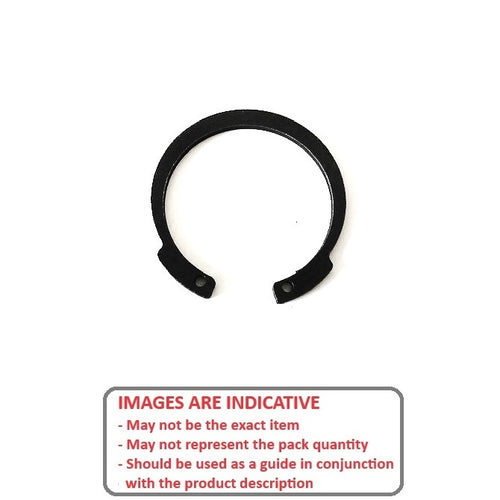

CCI-01500-C-V - Datasheet
MBA
Category Information
Retaining Rings - Internal - Circlips - InvertedInverted Circlips Internal Retaining Rings. M1308 / JV / INTV / BN830. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Inverted lugs seat into the groove for better clearance and cleaner appearance.
- Good for shielded bearings that pass tightly through the bore or housing.
- Use recommended installation pliers.

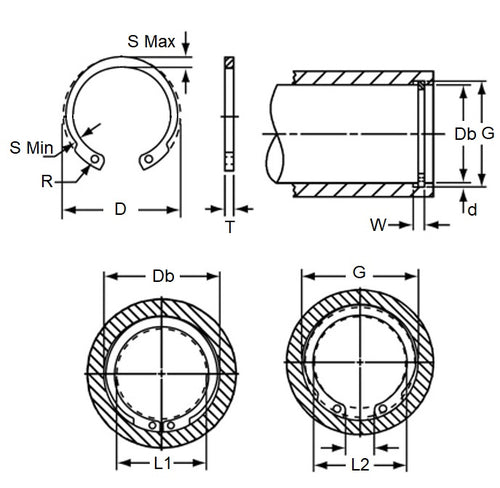

Product Data
- Housing Bore (B)
:
15.00
mm
(Equiv. 0.591 in.) - Clip Thickness (T)
0.80
mm
+ 0.11 / - 0.00
(Equiv. 0.031 in.) - Groove Dia. (Dg)
15.70
mm
+ 0.00 / - 0.05
(Equiv. 0.618 in.) - Approx. Loose Circlip OD (Dr) 16.10 mm + 0.42 / - 0.13
- Radial Wall Max (S) 1.9 - 2.0
- Groove Width (W) 0.90 mm
- Tool PRS-I009
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- Bossard BN830-015
- Ellison INTV-015
- Seeger JV-015
- NoCor MDHOI-015
- MDHOI015
- JV015
- INTV015
- M1308015
- M1308-015
- BN830015
