CCI-10000-C-V - Datasheet
MBA
Category Information

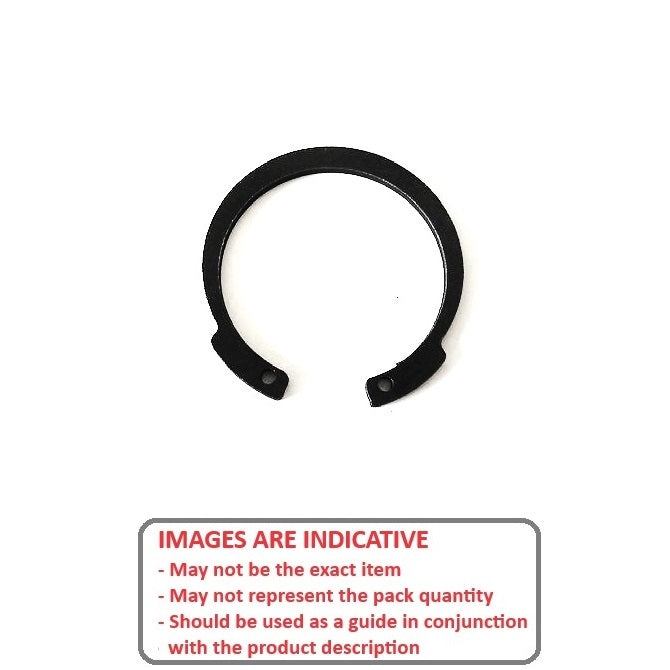

Retaining Rings - Internal - Circlips - InvertedInverted Circlips Internal Retaining Rings. M1308 / JV / INTV / BN830. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.

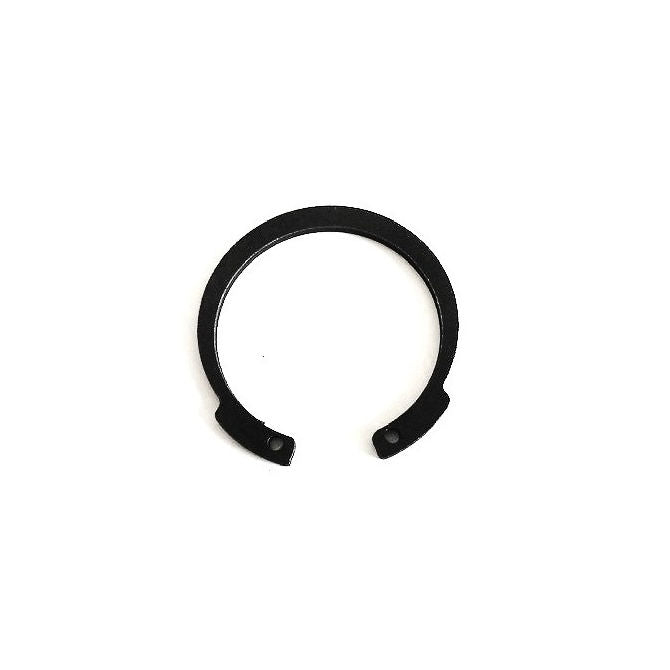

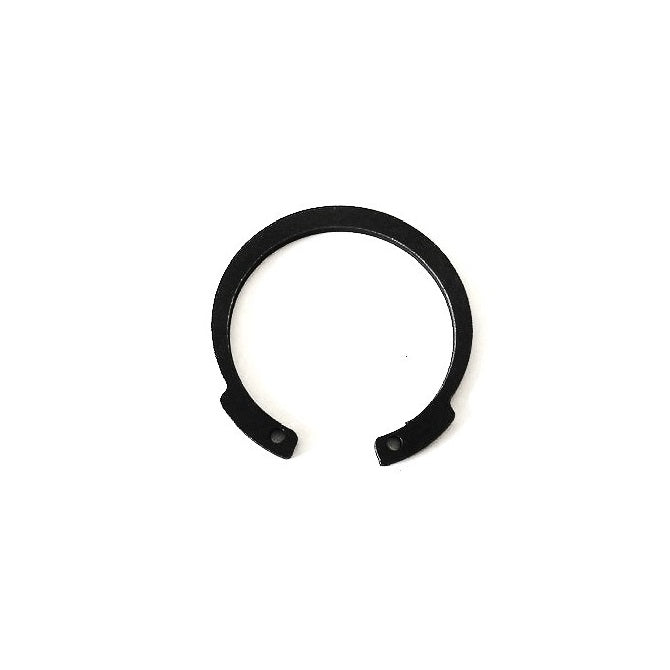

- Inverted lugs seat into the groove for better clearance and cleaner appearance.
- Good for shielded bearings that pass tightly through the bore or housing.
- Use recommended installation pliers.
Product Data

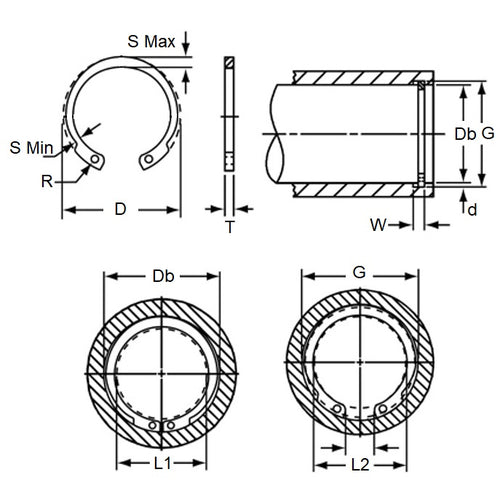

- Housing Bore (B)
:
100.00
mm
(Equiv. 3.937 in.) - Clip Thickness (T)
3.00
mm
+ 0.35 / - 0.00
(Equiv. 0.118 in.) - Groove Dia. (Dg)
103.50
mm
+ 0.00 / - 0.08
(Equiv. 4.075 in.) - Approx. Loose Circlip OD (Dr) 105.44 mm + 1.30 / - 0.54
- Radial Wall Max (S) 7.1 - 7.4
- Groove Width (W) 3.15 mm
- Tool PRS-I023
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- Bossard BN830-100
- Ellison INTV-100
- Seeger JV-100
- NoCor MDHOI-100
- MDHOI100
- JV100
- INTV100
- M1308-100
- M1308100
- BN830100
