CIB-25400-C - Datasheet

MBA

Category Information

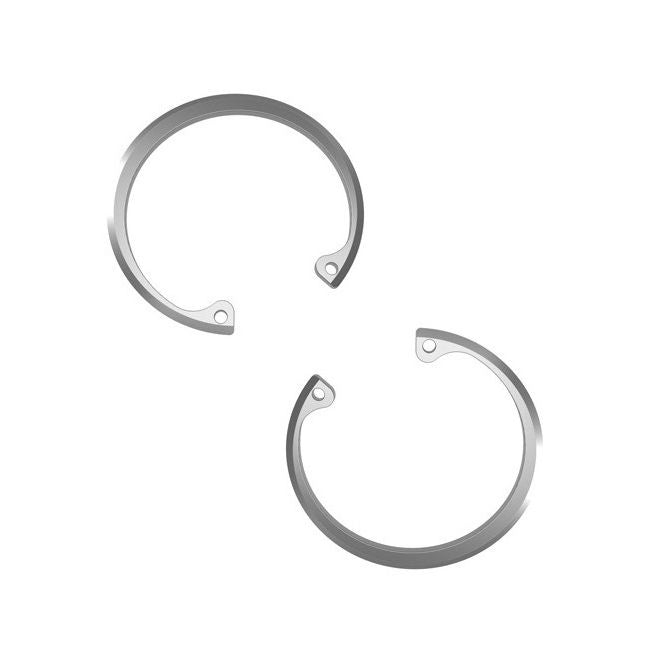

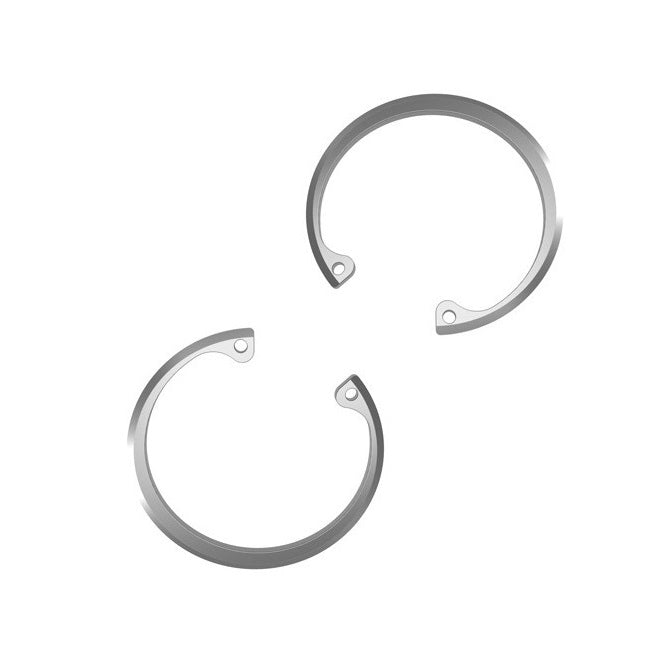

Retaining Rings - Internal - Circlips - Bevelled

Bevelled Circlips Internal Retaining Rings. N1302 / VHO / 16631 / 9002 / N5002. Retaining rings. Snap Rings (USA).

  • An expanded range may be available on special order. Please enquire.
  • A 15 Deg. bevel on the outside diameter to be fitted to a 15% bevel on the load bearing groove wall.
  • Will yield rigid end-play take-up of manufacturing tolerances or wear on the retained part.
  • Used in greasy or oily environments.

Product Data

  • Housing Bore (B) : 254.00 mm
    (Equiv. 10 in.)
  • Clip Thickness (T) 4.62 mm + 0.20 / - 0.00
    (Equiv. 0.182 in.)
  • Groove Dia. (Dg) 270.23 mm +/- 0.08
    (Equiv. 10.639 in.)
  • Approx. Loose Circlip OD (Dr) 275.08 mm + 4.60 / - 0.00
  • Radial Wall (S) min/max 8.00 - 17.15
  • Groove Width (W) 3.73 mm + 0.08 / - 0.00
  • Tool PRR-I150
  • Material Carbon Spring Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • NoCor VHO-1000
  • VHO1000
  • N1302-1000
  • N13021000
