Miniature Bearings Australia
CIB-02540-C - Datasheet
MBA
Category Information

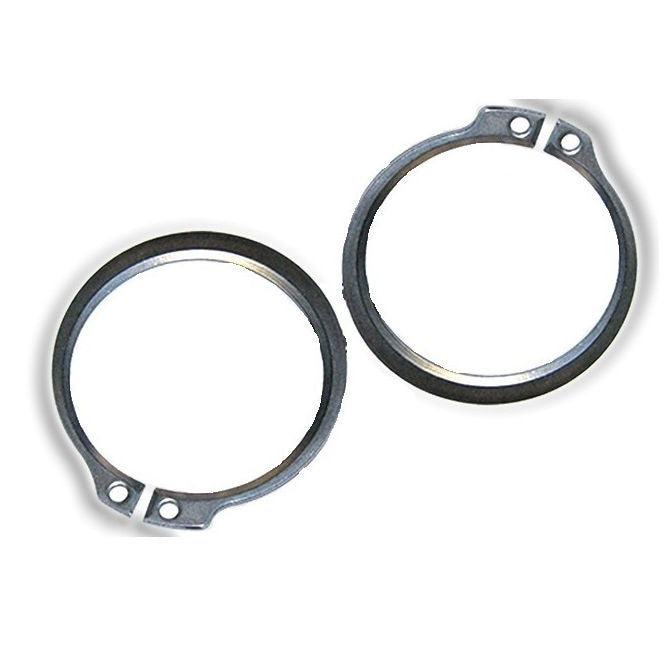

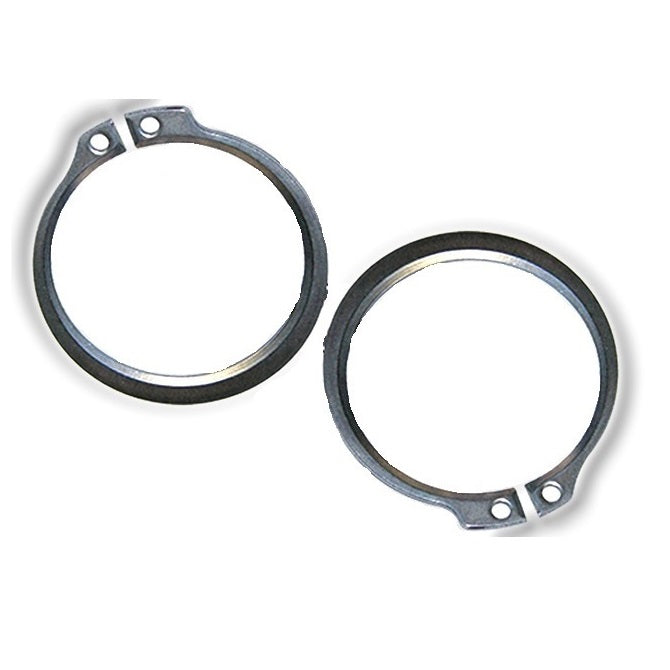

Retaining Rings - Internal - Circlips - BevelledBevelled Circlips Internal Retaining Rings. N1302 / VHO / 16631 / 9002 / N5002. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- A 15 Deg. bevel on the outside diameter to be fitted to a 15% bevel on the load bearing groove wall.
- Will yield rigid end-play take-up of manufacturing tolerances or wear on the retained part.
- Used in greasy or oily environments.
Product Data
- Housing Bore (B)
:
25.40
mm
(Equiv. 1 in.) - Clip Thickness (T)
1.02
mm
+ 0.08 / - 0.00
(Equiv. 0.04 in.) - Groove Dia. (Dg)
27.33
mm
+/- 0.05
(Equiv. 1.076 in.) - Approx. Loose Circlip OD (Dr) 27.97 mm + 0.63 / - 0.00
- Radial Wall (S) min/max 1.32 - 2.64
- Groove Width (W) 0.91 mm + 0.03 / - 0.00
- Tool PRS-I047
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor VHO-100
- VHO100
- N13020100
- N1302-0100
