Category Information

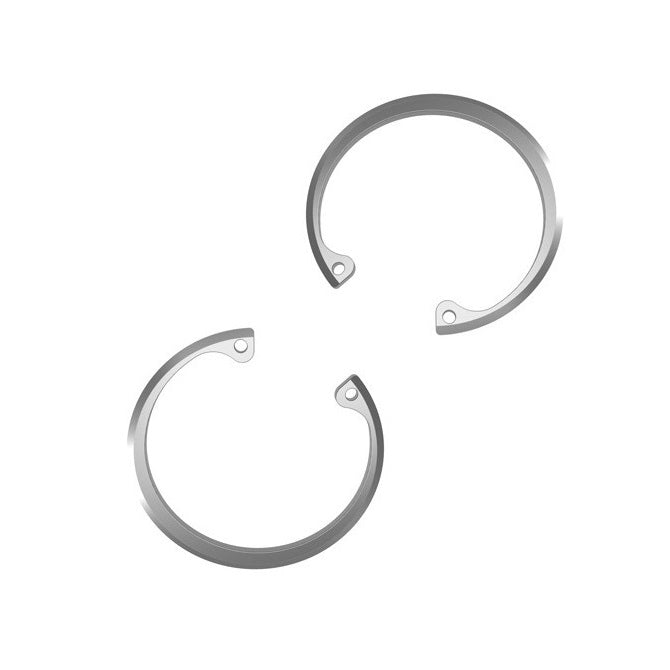

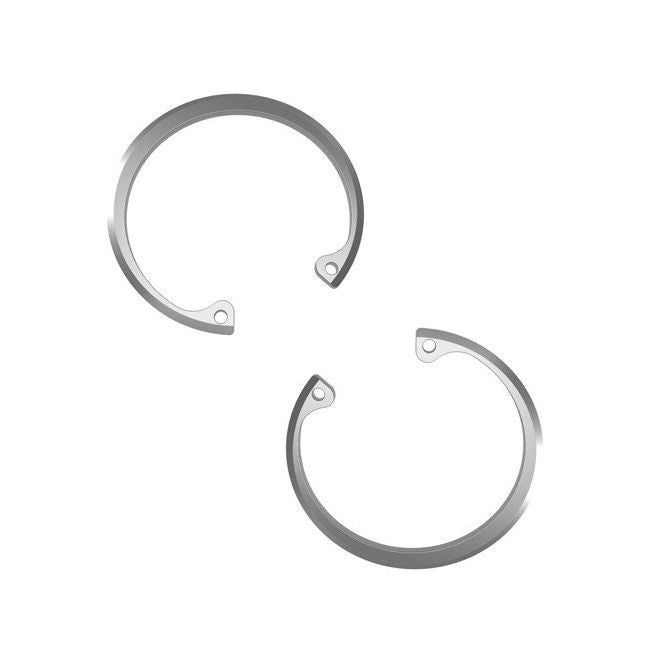

Retaining Rings - Internal - Circlips - BevelledBevelled Circlips Internal Retaining Rings. N1302 / VHO / 16631 / 9002 / N5002. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- A 15 Deg. bevel on the outside diameter to be fitted to a 15% bevel on the load bearing groove wall.
- Will yield rigid end-play take-up of manufacturing tolerances or wear on the retained part.
- Used in greasy or oily environments.
Product Data
- Housing Bore (B)
:
247.65
mm
(Equiv. 9.75 in.) - Clip Thickness (T)
4.62
mm
+ 0.20 / - 0.00
(Equiv. 0.182 in.) - Groove Dia. (Dg)
263.45
mm
+/- 0.08
(Equiv. 10.372 in.) - Approx. Loose Circlip OD (Dr) 268.17 mm + 4.60 / - 0.00
- Radial Wall (S) min/max 7.85 - 16.71
- Groove Width (W) 3.73 mm + 0.08 / - 0.00
- Tool PRR-I150
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor VHO-975
- VHO975
- N13020975
- N1302-0975
