CIB-21590-C - Datasheet
MBA
Category Information

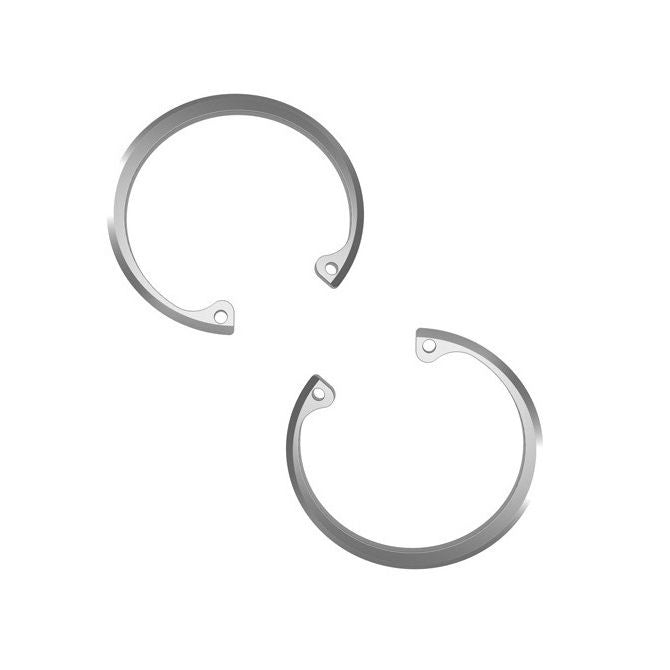

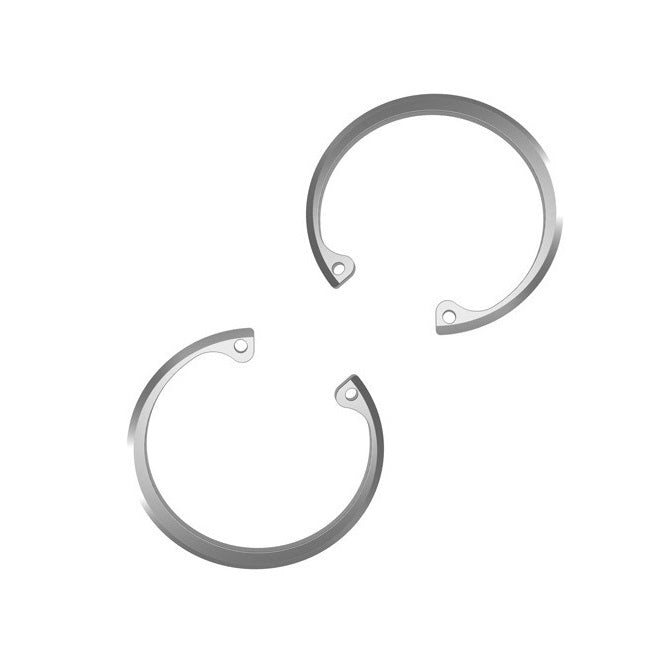

Retaining Rings - Internal - Circlips - BevelledBevelled Circlips Internal Retaining Rings. N1302 / VHO / 16631 / 9002 / N5002. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- A 15 Deg. bevel on the outside diameter to be fitted to a 15% bevel on the load bearing groove wall.
- Will yield rigid end-play take-up of manufacturing tolerances or wear on the retained part.
- Used in greasy or oily environments.
Product Data
- Housing Bore (B)
:
215.90
mm
(Equiv. 8.5 in.) - Clip Thickness (T)
4.62
mm
+ 0.20 / - 0.00
(Equiv. 0.182 in.) - Groove Dia. (Dg)
229.62
mm
+/- 0.08
(Equiv. 9.04 in.) - Approx. Loose Circlip OD (Dr) 233.55 mm + 4.60 / - 0.00
- Radial Wall (S) min/max 7.04 - 14.55
- Groove Width (W) 3.84 mm + 0.08 / - 0.00
- Tool PRR-I150
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor VHO-850
- VHO850
- N1302-0850
- N13020850
