DAK-029 - Datasheet

MBA

Category Information

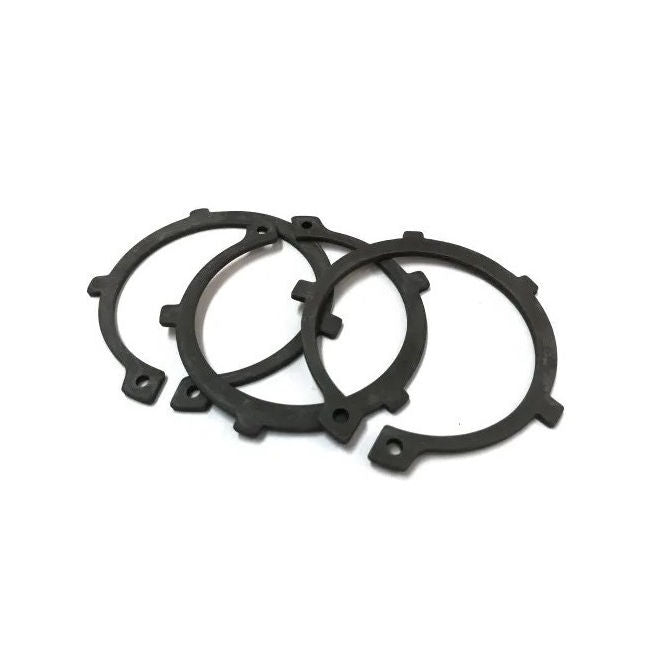

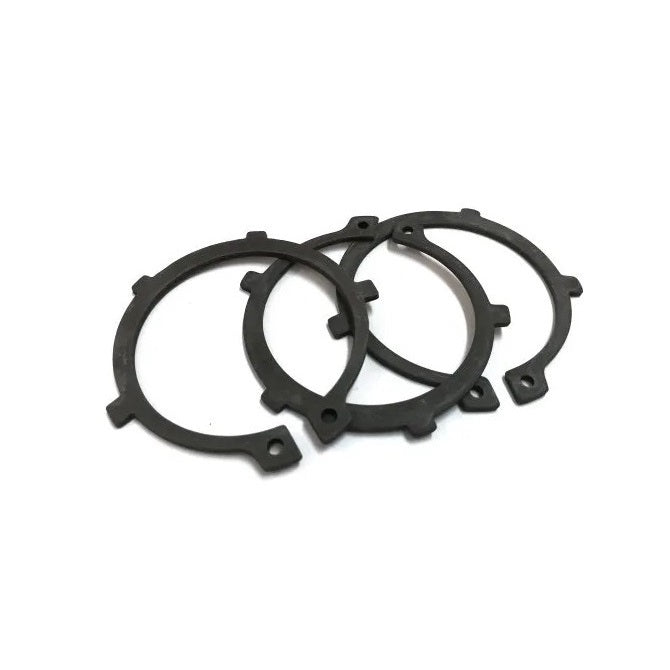

Retaining Rings - External - Circlips - Tabbed

Tabbed Circlips External Retaining Rings. DIN 983 / D2100 / AK. Retaining rings. Snap Rings (USA).

  • An expanded range may be available on special order. Please enquire.
  • External tabs are concentrically positioned for positioning in a concealed assembly.
  • Tabs act as spacers for securing machine components.
  • Conforming to DIN 983.

Product Data

  • Shaft Diameter (Ds) : 29.00 mm
    (Equiv. 1.142 in.)
  • Clip Thickness (T) 1.50 mm + 0.00 / - 0.21
    (Equiv. 0.059 in.)
  • Groove Dia. (Dg) 27.60 mm + 0.00 / - 0.06
    (Equiv. 1.087 in.)
  • Approx. Loose Circlip ID (A) 26.48 - 27.11 mm
  • Groove Width (W) 1.60 mm
  • Tool PRS-E018
  • Material Carbon Spring Steel
Country of Origin: US
