CCE-55000-C - Datasheet

ENQUIRE

Category Information

Retaining Rings - External - Circlips - Standard - Carbon Steel

Carbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).

  • An expanded range may be available on special order. Please enquire.
  • Plain carbon steel

Product Data

  • Shaft Diameter (Ds) : 550.00 mm
  • Clip Thickness (T) 8.00 mm + 0.00 / - 0.15
    (Equiv. 0.315 in.)
  • Groove Dia. (Dg) 536.00 mm + 0.00 / - 1.00
    (Equiv. 21.102 in.)
  • Approx. Loose Circlip ID (A) 525.00 mm
  • Groove Width (W) 8.20 mm
  • Standard DIN471
  • Material Carbon Spring Steel Self Finish
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Ellison® 471-550
  • Seeger® A-550
  • Seeger® A550X8
  • Bossard® BN818-550
  • Waldes® D1400-550
  • NoCor® DSH-550
  • Rotor Clip® DSH-550
  • BN818550
  • D14005500
  • D1400-5500
  • 471550
  • DSH550
View full details

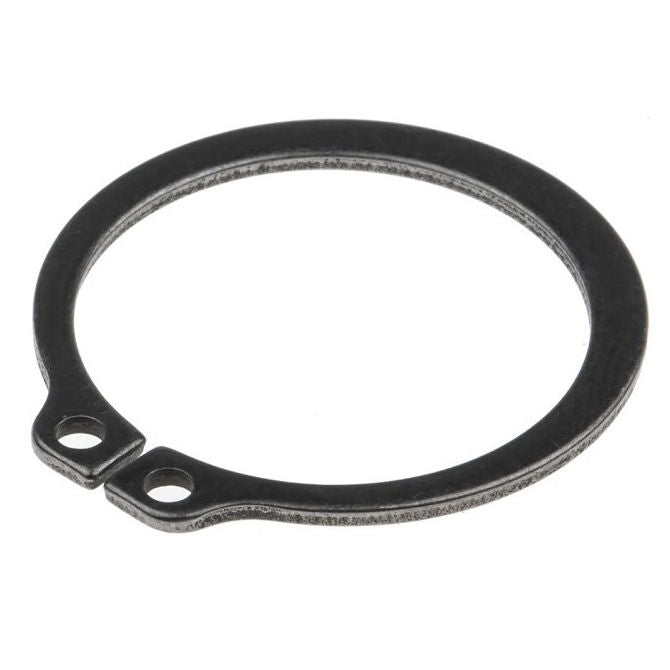

CCE-55000-CDiagramCCE-55000-CImage
